Infratech CD60 CD Series Dual Element 6000W Infrared Electric Patio Heater
Free Standard Shipping
Description
The Infratech CD60 from the C Series is a high performance dual element infrared electric patio heater engineered for large covered outdoor spaces that require maximum heat output and expanded coverage. With a powerful 6000 watt output across dual quartz elements and an extended 61 1/4 inch body, the CD60 is designed for larger patios, commercial dining areas, hospitality venues, and open seating environments.
Optimized for mounting heights between 8 and 12 feet, the CD60 delivers broad radiant warmth and can cover approximately 11 ft x 11 ft in average protected conditions. Its extended housing allows for improved heat distribution across larger zones compared to shorter body models.
Manufactured in the USA from durable stainless steel, the CD60 provides long term reliability in both residential and commercial applications. Dual element construction enhances comfort control and produces more balanced radiant heat distribution than single element heaters.
For coastal, high humidity, or salt air environments, this model is available in a Marine Grade 316 stainless steel construction. Standard models use corrosion-resistant 304 stainless steel. The 316 upgrade provides enhanced protection against saltwater exposure and harsh environmental conditions.
Like all Infratech heaters, the CD60 emits focused medium wave infrared heat that warms people and surfaces directly rather than heating ambient air. Proper mounting height, aiming angle, and control selection are critical for achieving optimal comfort and performance.
Need a custom solution?
In addition to the standard finish options listed, custom color selections may be available upon request. Contact our TTH Concierge team to discuss custom powder coat options and project-specific requirements.
We also offer a complimentary heat layout design service through Infratech. Our team can evaluate your patio dimensions, mounting heights, and usage goals to recommend optimal heater placement and the most effective configuration for your space.
How to Choose the Right Heater Configuration
The Infratech CD60 is designed for larger covered spaces that require higher wattage and extended body length for broader heat distribution. Proper mounting height and voltage selection are essential for performance and safety.
| Recommended Use | Large covered patios, commercial dining areas, hospitality environments, and expansive seating zones |
| Heat Coverage | Approximately 121 square feet when mounted at the recommended height |
| Recommended Mounting Height | 8 to 12 feet |
| Voltage Options | 208V, 240V, 277V, or 480V. Voltage must match your existing electrical supply |
| Installation Type | Hardwired installation required for permanent installations |
Important: Voltage must match your existing electrical supply. Confirm with a licensed electrician if you are unsure.
Optional accessories available:
-
Motif Decorative Faceplate (available only for black and stainless steel heaters)
- Infratech C/CD Series Adjustable Drop Pole Mount
-
Infratech Solid State Control Packages (Simple Plus)
-
Infratech Universal Control Panels (Smart)
-
Infratech Home Management Control Panels (Smart Plus)
Features
- Dual element quartz infrared heater for maximum output and broader coverage
- 6000 watt heating capacity for large covered outdoor spaces
- 61 1/4 inch body length for expanded radiant distribution
- Medium wave infrared technology for efficient directional warmth
- Approximate heat coverage of up to 121 square feet in average protected conditions
- Ideal for mounting heights of 8 to 12 feet
- Wall mount and ceiling mount installation options
- Mounting brackets included
- Durable stainless steel construction
- Available in stainless steel and eight standard powder coated finishes
- IPX4 rated for covered outdoor environments
- Adjustable mounting angle up to 60 degrees for targeted heat direction
- Minimal maintenance requirements
- Made in the USA
- 3 year manufacturer warranty
Specs
INFRATECH CD SERIES DUAL ELEMENT INFRARED ELECTRIC PATIO HEATER SPEC SHEET
INFRATECH CD SERIES DUAL ELEMENT INFRARED ELECTRIC PATIO HEATER MANUAL
| Series | CD Series |
| Model | CD60 |
| Length | 61.25 inches |
| Width / Diameter | 8.19 inches |
| Height | 8.88 inches |
| Depth | 6 inches |
| Weight | 20 lbs |
| Heating Area | Approximately 121 sq ft |
| Fuel Source | Electric |
| Heating Element | Quartz (Dual Element) |
| Infrared Technology | Medium Wave |
| Standard Wattage | 6000 watts |
| Voltage Options | 208V, 240V, 277V, 480V |
| Amperage | 25 amps (240V), 28.85 amps (208V), 21.66 amps (277V), 12.5 amps (480V) |
| Recommended Mounting Height | 8 to 12 feet |
| Installation Options | Wall mount or ceiling mount |
| Finish Options | Stainless Steel, White, Biscuit, Almond, Beige, Bronze, Black, Grey, Copper, Marine Grade Stainless Steel |
| Material | Steel |
| IP Rating | IPX4 |
| Application | Residential and Commercial |
| Warranty | 3 years |
| Country of Origin | Made in USA |
California Proposition 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
FAQ
DO I NEED TO PURCHASE CONTROLS SEPARATELY?
Yes. All Infratech C Series heaters require a compatible control to operate. Controls are selected based on your heater configuration, electrical setup, and desired functionality. Options range from simple on/off switches to advanced smart home integrations. If you are unsure which control is right for your space, our TTH Concierge team can assist.
WHICH CONTROL OPTION IS BEST FOR MOST HOMEOWNERS?
Most residential installations use a basic on/off switch or an input regulator. Larger patios or multi-heater layouts often benefit from custom control panels. Smart controls are recommended for homes with existing smart home systems or when app-based control is desired.
WHAT VOLTAGE SHOULD I CHOOSE?
Voltage must match your existing electrical supply. C Series heaters are available in multiple voltage configurations depending on model, including residential and commercial options. Always confirm voltage requirements with a licensed electrician prior to ordering.
CAN THIS HEATER BE USED INDOORS?
Yes. Infratech C Series heaters are UL listed for both indoor and outdoor use when installed according to manufacturer guidelines and local building codes.
HOW MUCH AREA DOES THE C SERIES HEAT?
Heat coverage depends on the specific model, wattage, and mounting height. C Series heaters are designed to provide focused, directional warmth rather than ambient heating. Multiple heaters may be required for larger spaces or open layouts.
WHAT IS THE RECOMMENDED MOUNTING HEIGHT?
Recommended mounting height varies by model but generally ranges from 6 to 10 feet. Each product page lists the optimal mounting height for that specific heater.
CAN THE HEATER BE MOUNTED ON A WALL OR CEILING?
Yes. C Series heaters can be wall mounted or ceiling mounted. Mounting brackets are included. If a flush mount installation is required, Infratech W or WD Series heaters are the appropriate solution.
IS THE HEATER WEATHER RESISTANT?
Yes. Infratech C Series heaters are rated IPX4 and are suitable for covered outdoor installations. They are designed to withstand typical outdoor conditions when installed properly.
WHAT FINISH OPTIONS ARE AVAILABLE?
C Series heaters are available in stainless steel and a range of standard powder-coated finishes including white, biscuit, almond, beige, bronze, black, grey, and copper.
ARE ALL FINISHES RETURNABLE?
Powder-coated finishes are non-returnable. Stainless steel finishes may be subject to standard return guidelines. Please review our Return & Refund Policy prior to ordering.
WHAT IS THE DIFFERENCE BETWEEN STAINLESS STEEL AND MARINE GRADE?
Standard models are constructed from corrosion-resistant 304 stainless steel. Marine grade upgrades use 316 stainless steel, which provides enhanced protection in coastal, humid, or harsh environments.
IS PROFESSIONAL INSTALLATION REQUIRED?
Installation should be performed by a qualified electrician. Proper electrical planning and mounting height are critical for safety and performance.
WHERE ARE INFRATECH HEATERS MADE?
All Infratech heaters are proudly made in the USA.
WHAT WARRANTY IS INCLUDED?
Infratech C Series heaters include a 3-year manufacturer warranty.
Delivery
Estimated delivery time is 2 weeks. Curbside freight delivery only. Customer is responsible for unloading and placement. See full Shipping Policy for details.
Returns Policy
Infratech custom powder-coated units are not eligible for return. Stainless, Marine Grade Stainless, and 8 standard colors (Almond, Beige, Biscuit, Black, Bronze, Copper, Grey, and White) are returnable within 30 days, but subject to applicable fees. See full Return Policy for details.
Choose options
Description
The Infratech CD60 from the C Series is a high performance dual element infrared electric patio heater engineered for large covered outdoor spaces that require maximum heat output and expanded coverage. With a powerful 6000 watt output across dual quartz elements and an extended 61 1/4 inch body, the CD60 is designed for larger patios, commercial dining areas, hospitality venues, and open seating environments.
Optimized for mounting heights between 8 and 12 feet, the CD60 delivers broad radiant warmth and can cover approximately 11 ft x 11 ft in average protected conditions. Its extended housing allows for improved heat distribution across larger zones compared to shorter body models.
Manufactured in the USA from durable stainless steel, the CD60 provides long term reliability in both residential and commercial applications. Dual element construction enhances comfort control and produces more balanced radiant heat distribution than single element heaters.

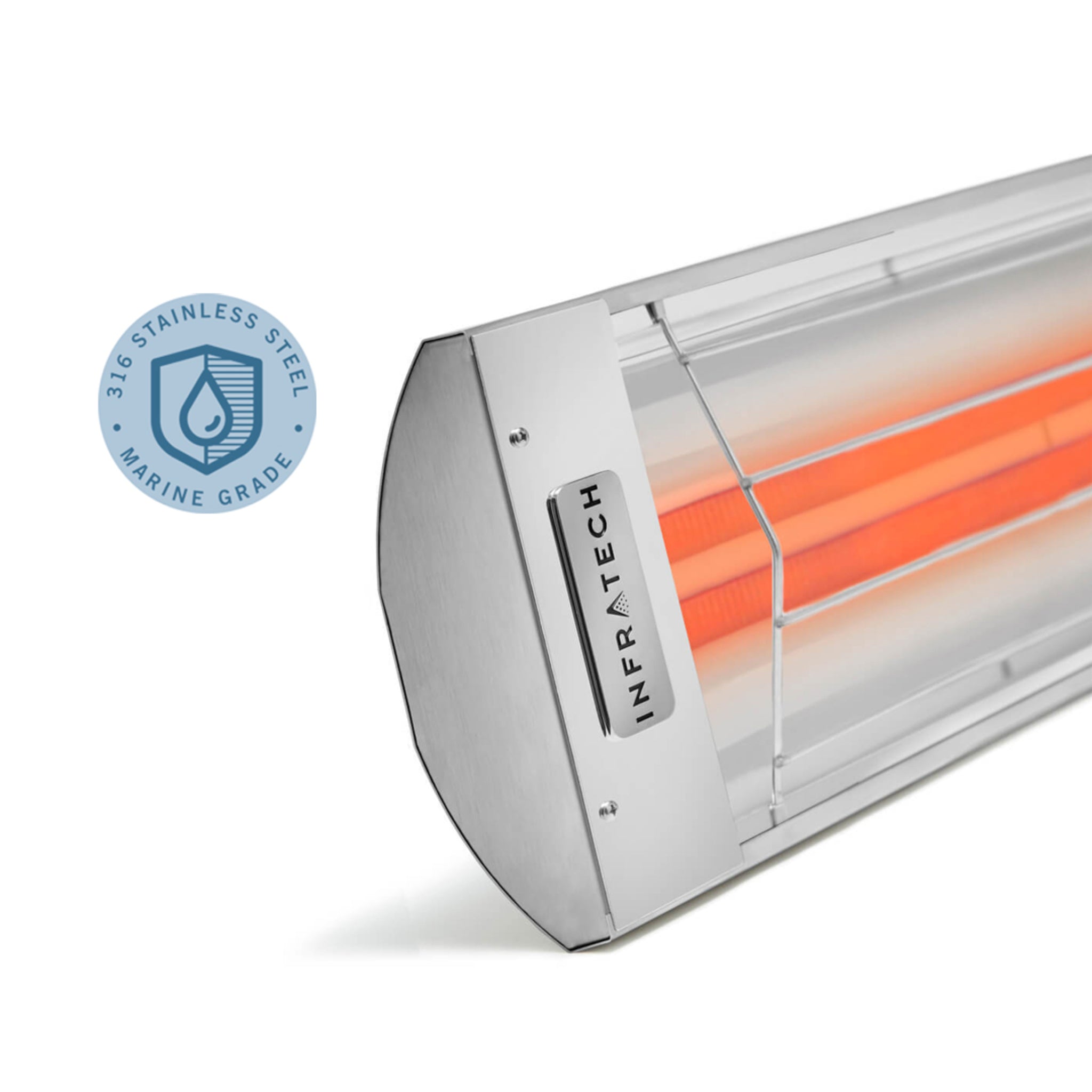

For coastal, high humidity, or salt air environments, this model is available in a Marine Grade 316 stainless steel construction. Standard models use corrosion-resistant 304 stainless steel. The 316 upgrade provides enhanced protection against saltwater exposure and harsh environmental conditions.
