Description
The Infratech Solid State Control Package is a complete dimming and zoning solution designed to operate Infratech 208V–480V heaters with precision analog intensity control and integrated timer functionality.

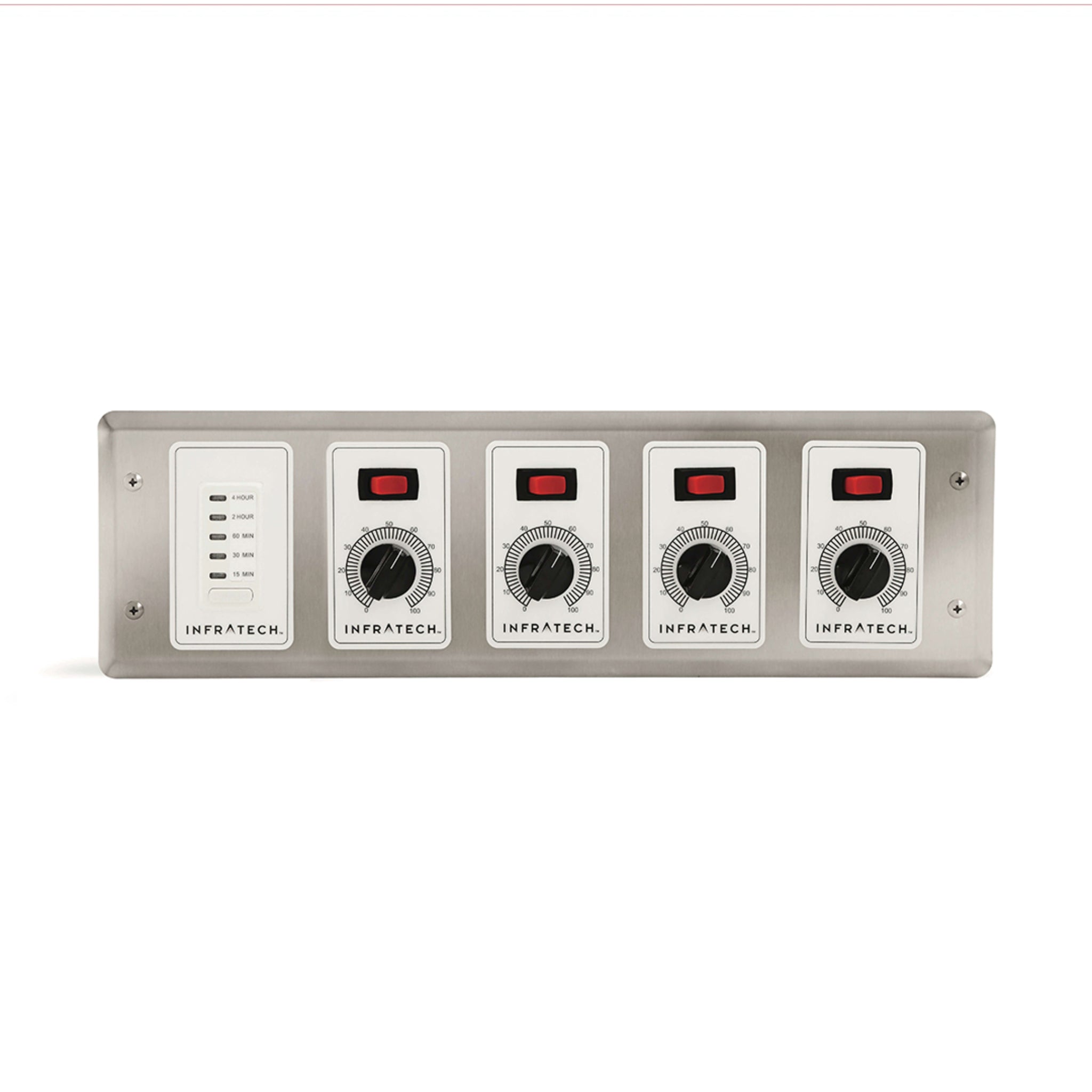

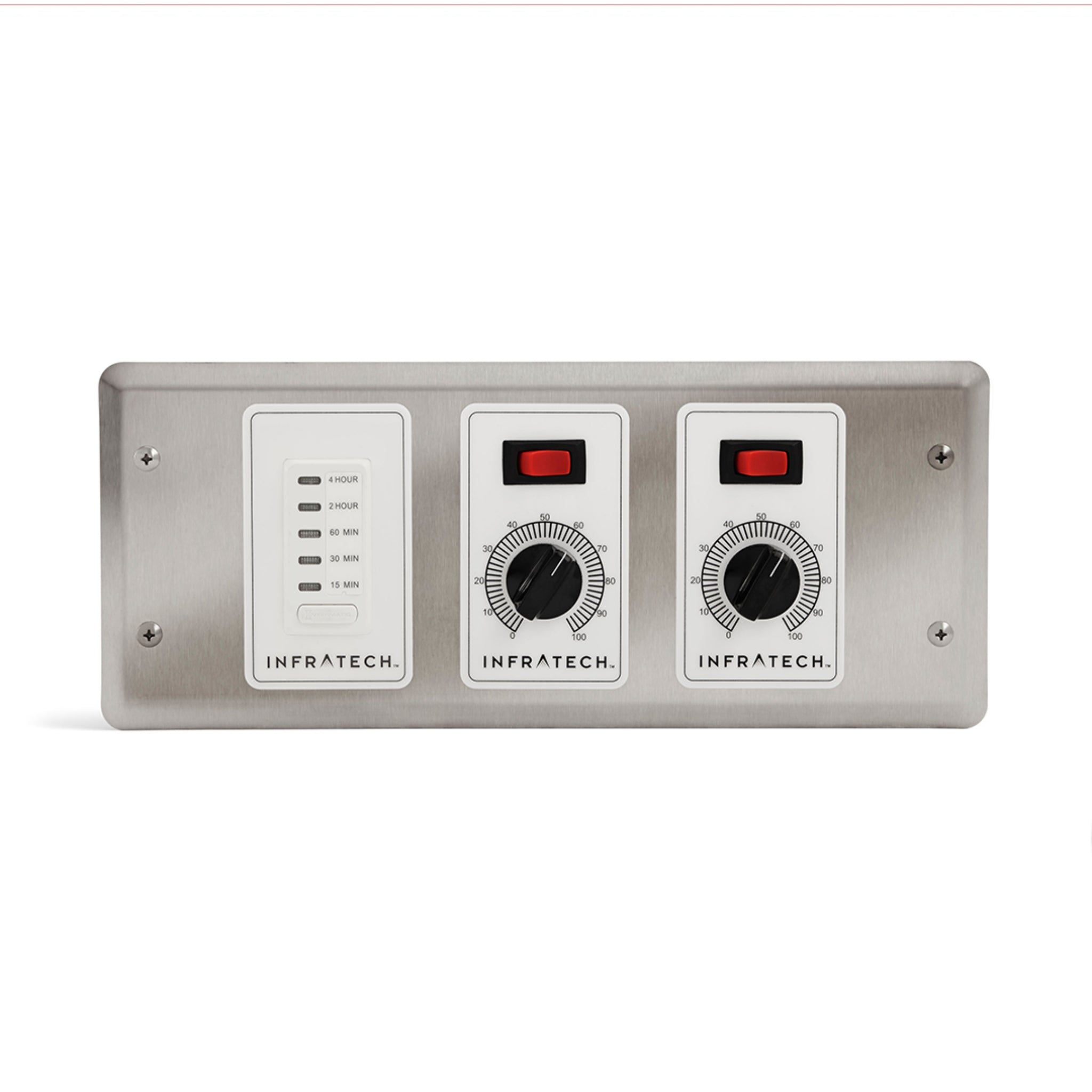

This system includes a Solid State Relay Panel paired with a Zone Analog Controller with Digital Timer. Together, they allow independent zone heating, adjustable heat output from 0% to 100%, and built-in timer control for energy efficiency and user convenience.
Unlike home automation systems, Solid State Controls operate independently and do not require a 0–10V DC automation signal. This package is ideal for residential patios, hospitality spaces, restaurants, and commercial projects where flexible zoning and manual intensity adjustment are required.
All panels are project specific and include electrical wiring diagrams for installation.
Who Is This For?
- Projects requiring manual dimming control with built-in timer functionality
- Residential patios without centralized home automation
- Hospitality or restaurant installations needing independent heat zones
- Installations where adjustable heat intensity is preferred over simple on/off switching
Important Requirements
- Relay panel and zone analog controller must be used together
- Designed for use with Infratech heaters only
- Professional installation required
- Solid State Relay Panel must be surface mounted in a well-ventilated area
- Custom-built panels are non-returnable
Not sure if this is the correct control system for your project? Contact our TTH Concierge team before ordering. We will confirm compatibility with your heater configuration and electrical setup.
How to Select the Correct Panel
| Step 1: Determine Number of Heating Zones | Each zone requires one relay and one analog control channel |
| Step 2: Confirm Heater Voltage | Compatible with 208V–480V Infratech heaters |
| Step 3: Confirm Installation Location | Relay panel must be surface mounted in a well-ventilated location with at least 12 inches clearance on each side and remain accessible per NEC |
Features
- Complete package includes Solid State Relay Panel plus Zone Analog Controller with Digital Timer
- Independent zone control with 0% to 100% adjustable heat intensity
- Built-in digital timer functionality at the controller
- Designed for Infratech 208V to 480V heaters
- No home automation or 0 to 10V DC signal required
- Project-specific relay panel with wiring diagram documentation
- Relay panel enclosure rated NEMA 4
- Zone controller enclosure rated NEMA 12
- Made in the USA
- 3 year manufacturer warranty
- Custom built to order and non-returnable
Specs
INFRATECH SOLID STATE CONTROL PACKAGES GUIDE
INFRATECH SOLID STATE CONTROL PACKAGE SAMPLE WIRING DIAGRAM SHEET
INFRATECH COMPLETE CONTROLS SYSTEMS OPTIONS GUIDE
| Product Type | Solid State Control Package |
| Control Type | Analog Dimming with Digital Timer |
| Zone Configurations | 1 to 4 Zone Heating Zones |
| Relay Panel Options | Project-specific solid state relay panel matched to zone count (1 to 4) |
| Compatible Heater Voltage | 208V–480V |
| Relay Panel Enclosure | NEMA 4 |
| Zone Controller Enclosure | NEMA 12 |
| Mounting Requirement | Surface mount relay panel, minimum 12" clearance on each side |
| Country of Origin | USA |
| Warranty | 3 Years |
California Proposition 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
FAQ
DOES THIS PACKAGE INCLUDE BOTH THE RELAY PANEL AND THE WALL CONTROLLER?
Yes. This product includes the Solid State Relay Panel and the matching Zone Analog Controller with Digital Timer. Both components are required for operation.
DOES THIS SYSTEM REQUIRE HOME AUTOMATION?
No. Solid State Controls operate independently and do not require a 0–10V DC automation system.
CAN I ADJUST HEAT INTENSITY?
Yes. Heat output can be adjusted from 0% to 100% using the analog dimmer.
HOW DO I CHOOSE THE RIGHT NUMBER OF ZONES?
Choose the number of zones based on how many independent heater groups you want to control separately. Each zone can control one heater or multiple heaters wired together within the allowed electrical limits. If you are planning a multi-heater zone, contact TTH Concierge to confirm the correct configuration before ordering.
WHERE CAN THE RELAY PANEL BE INSTALLED?
The relay panel must be surface mounted in a well-ventilated area with a minimum of 12 inches clearance on each side. It must remain accessible per National Electric Code.
CAN THIS BE USED WITH NON-INFRATECH HEATERS?
No. Use with competitor heaters or accessories may void the Infratech warranty.
ARE THESE RETURNABLE?
No. Solid State Control Packages are project specific and non-returnable.
