Bromic Tungsten Smart-Heat™ Outdoor Electric Patio Heater
Free Standard Shipping
Description
The Bromic Tungsten Smart-Heat™ Outdoor Electric Patio Heater is engineered for powerful, reliable warmth in larger outdoor spaces and colder climates. Designed with Bromic’s market-leading radiant heat technology, this electric patio heater delivers focused, directional heat that warms people and surfaces rather than the surrounding air. The result is efficient, consistent comfort in patios, terraces, outdoor kitchens, and commercial environments.
Built with durability in mind, the Tungsten Electric heater features a matte stainless steel body with corrosion-resistant black or white finishes. Its patented honeycomb fascia promotes even heat distribution while protecting the internal heating element. Combined with Bromic’s superior wind resistance design, this heater maintains performance even in breezy conditions where traditional electric heaters struggle.

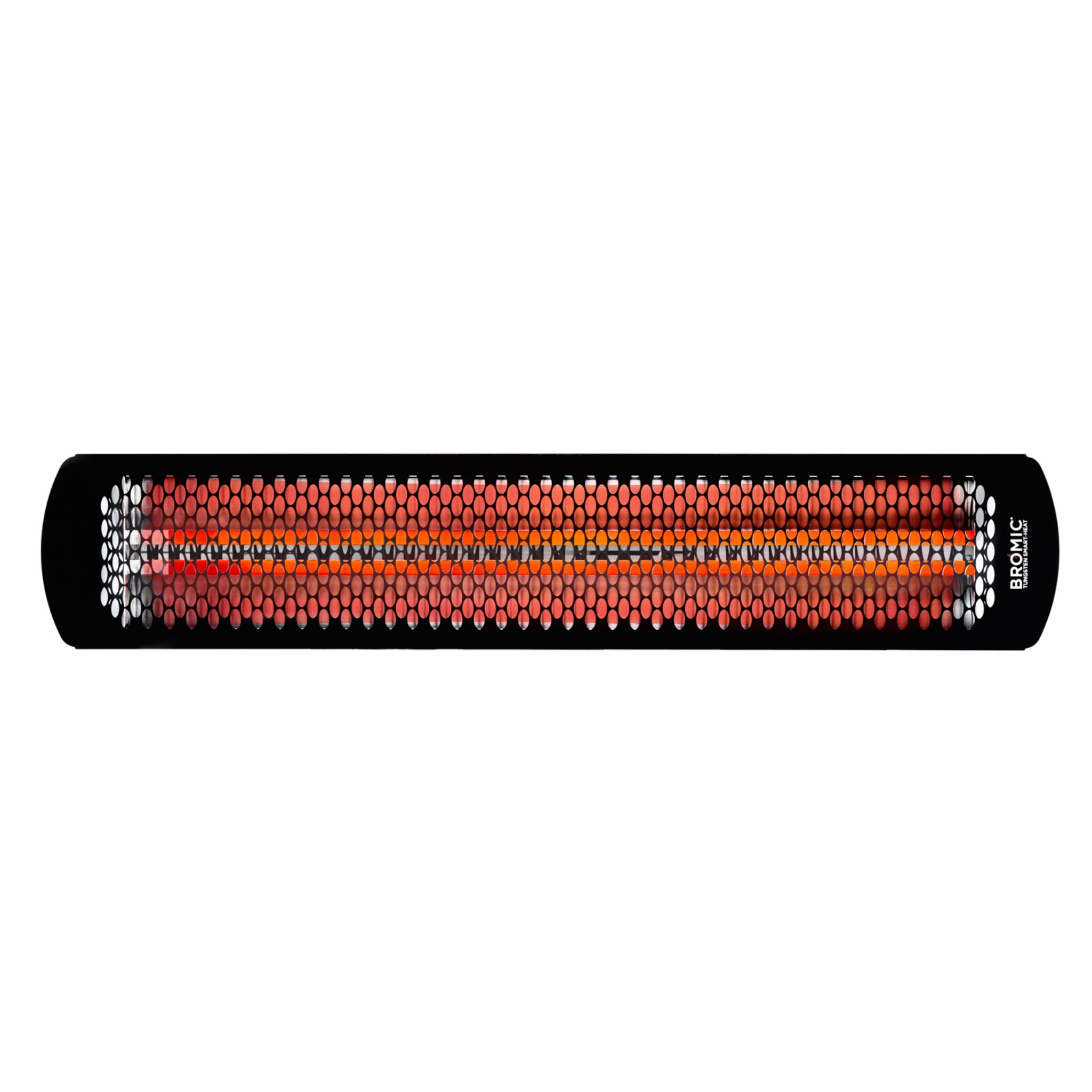

At the core of the Tungsten Smart-Heat™ Electric is a high-quality quartz heating element paired with a Parabolic Specular Reflector. This system captures and redirects infrared energy back toward the target area, maximizing efficiency and heat output. Adjustable mounting brackets allow you to fine-tune the heat direction, ensuring warmth is delivered exactly where it is needed.
Available in multiple power options from 2000W to 6000W, the Bromic Tungsten Smart-Heat™ Electric Patio Heater is suitable for residential and commercial installations alike.
- The 2000W and 3000W models use one infrared element and draw power from a single circuit.
- The 4000W and 6000W models use two infrared elements and require higher electrical capacity.
- Dual-element models provide broader heat coverage and higher output, making them better suited for larger areas or commercial installations.

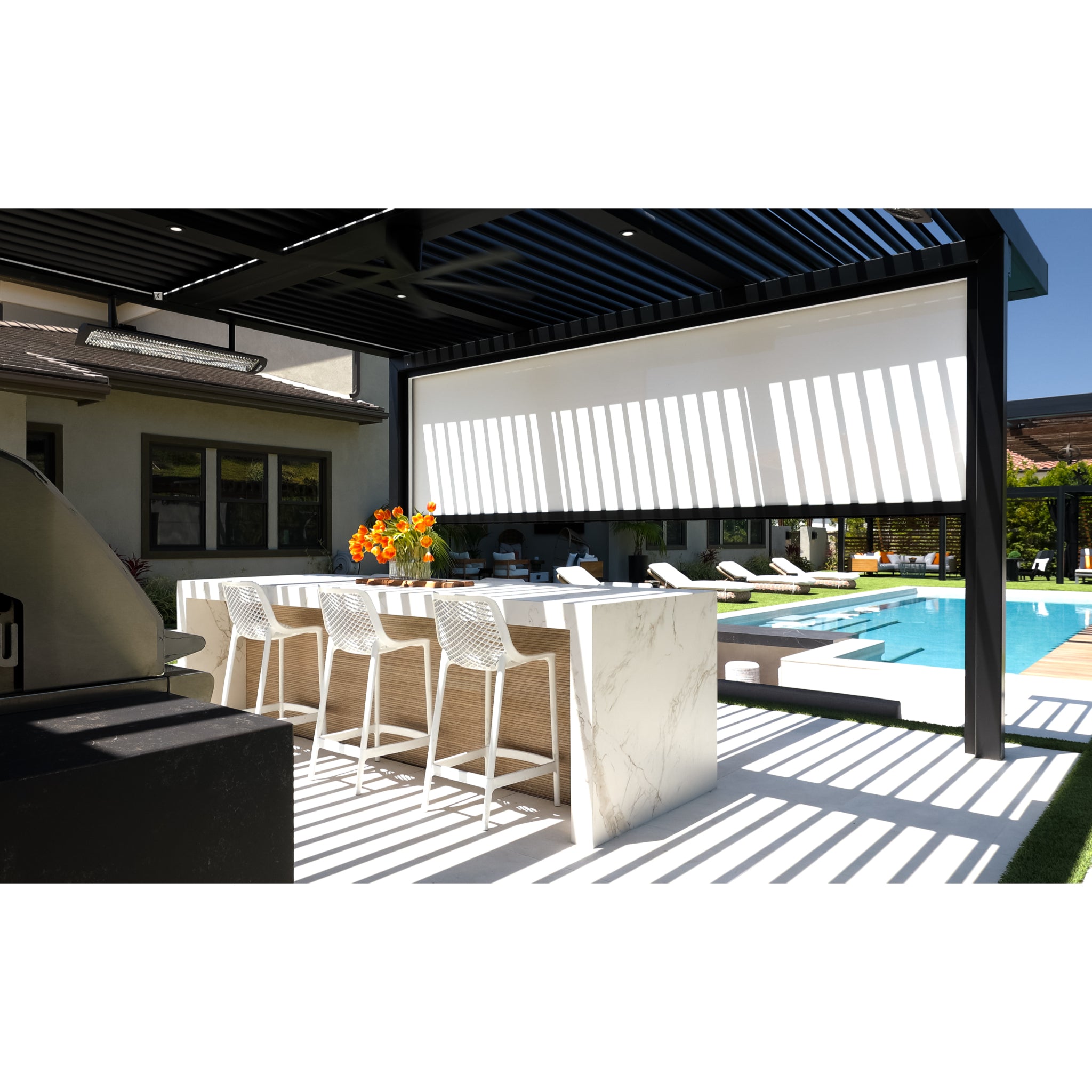

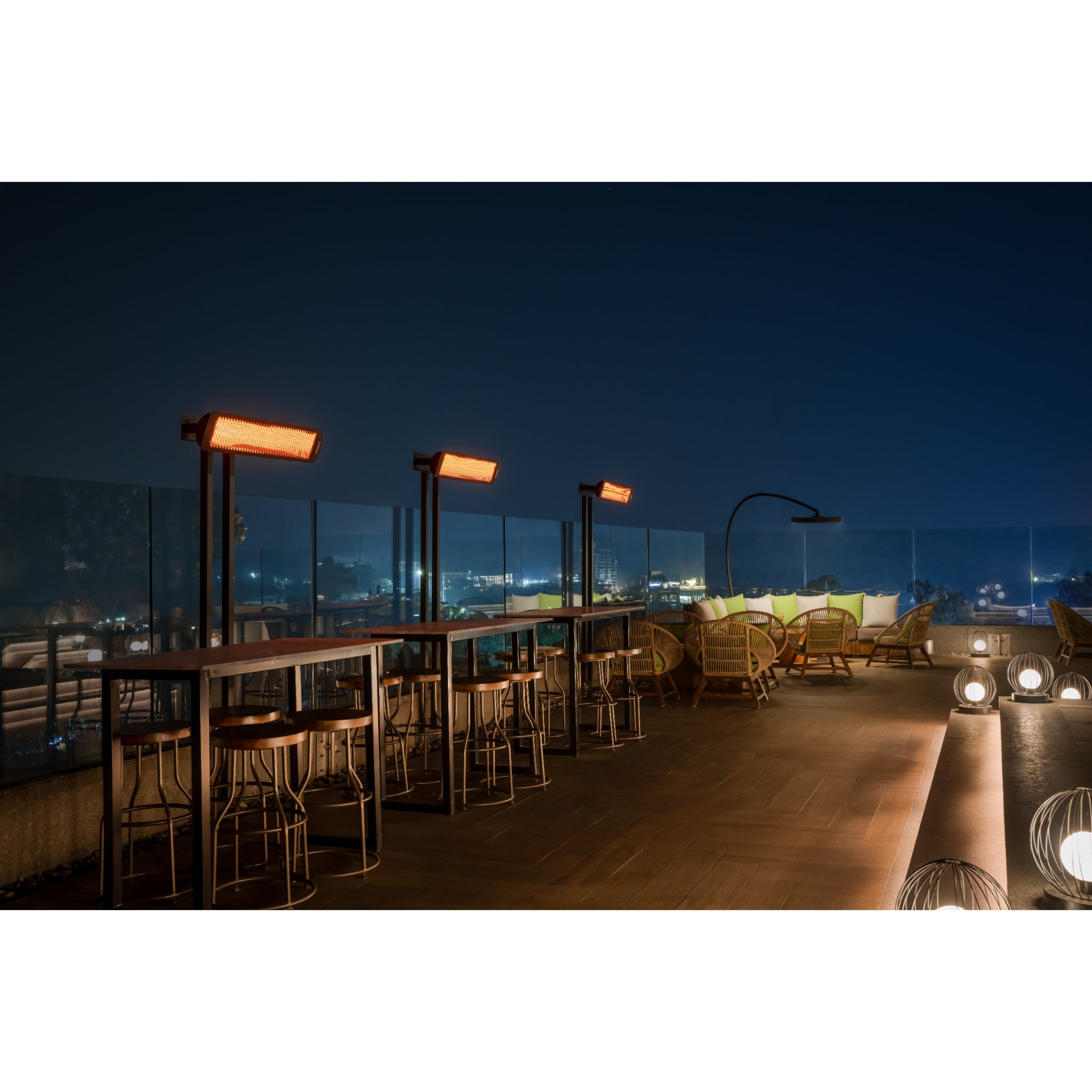

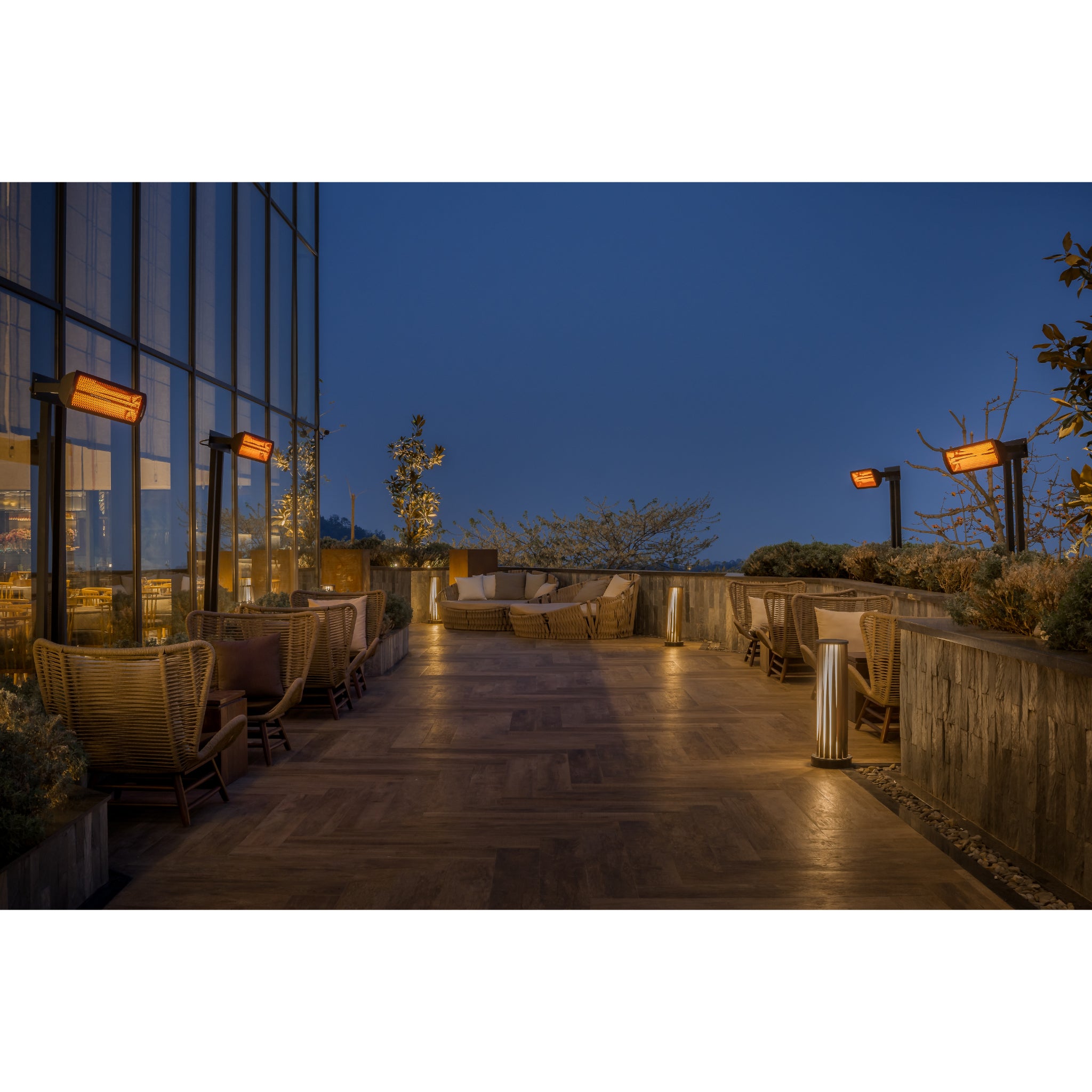

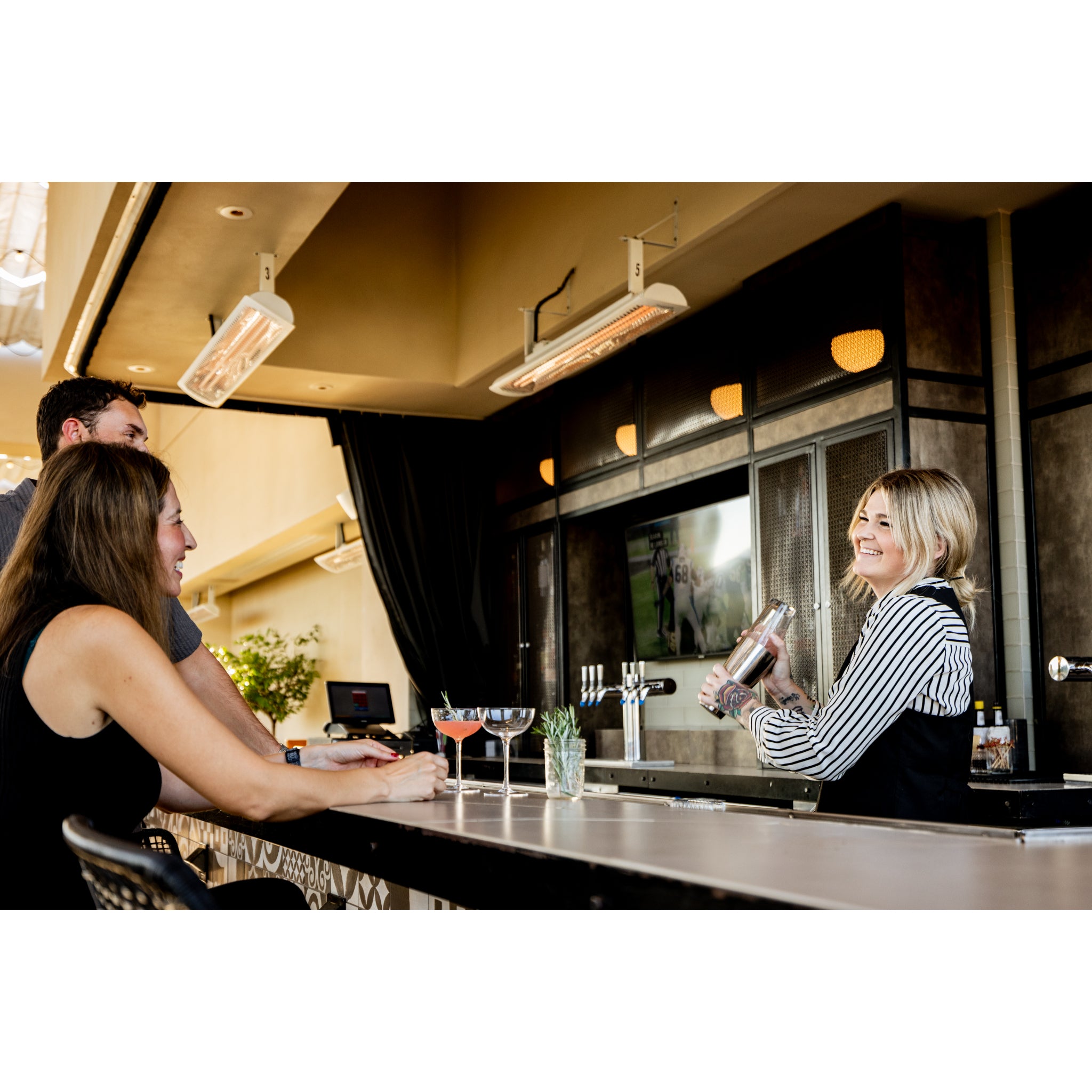

With compatibility across wall, ceiling, pole, and recessed mounting options, as well as advanced control systems including dimmers and smart automation, this heater offers a flexible, design-forward heating solution for modern outdoor spaces.
TTH offers a free heater design service that will help you choose the right heaters for your space. Contact our Concierge Team to start your design plan today.
How to Choose the Right Heater Configuration
| WATTAGE | RECOMMENDED USE | APPROX. HEAT COVERAGE |
| 2000W | Small patios, balconies, intimate seating areas, sheltered spaces | Up to 65 sq ft |
| 3000W | Small to medium patios, residential covered outdoor areas | Up to 100 sq ft |
| 4000W | Medium to large patios, most residential installs, light commercial use | Up to 130 sq ft |
| 6000W | Large patios, high ceilings, cold climates, commercial spaces | Up to 160 sq ft |
| VOLTAGE | TYPICAL APPLICATION |
| 240V | Most residential homes and private outdoor spaces |
| 208V | Condos, apartments, multi-unit and shared electrical systems |
| 277V | Commercial buildings, restaurants, hospitality and large venues |
Important: Voltage must match your existing electrical supply. Confirm with a licensed electrician if you are unsure.
Optional accessories available:
- Affinity On/Off Controls
- Affinity Dimmer Controls
- Ceiling Mount Suspension Pole Kit
- Recessed ceiling kit
Features
- Directional radiant heat for efficient, targeted warmth
- Patented superior wind resistance for consistent performance
- Unique honeycomb fascia for even heat distribution
- High quality quartz heating element for high output performance
- Parabolic Specular Reflector maximizes infrared efficiency
- Matte finish stainless steel construction for durability

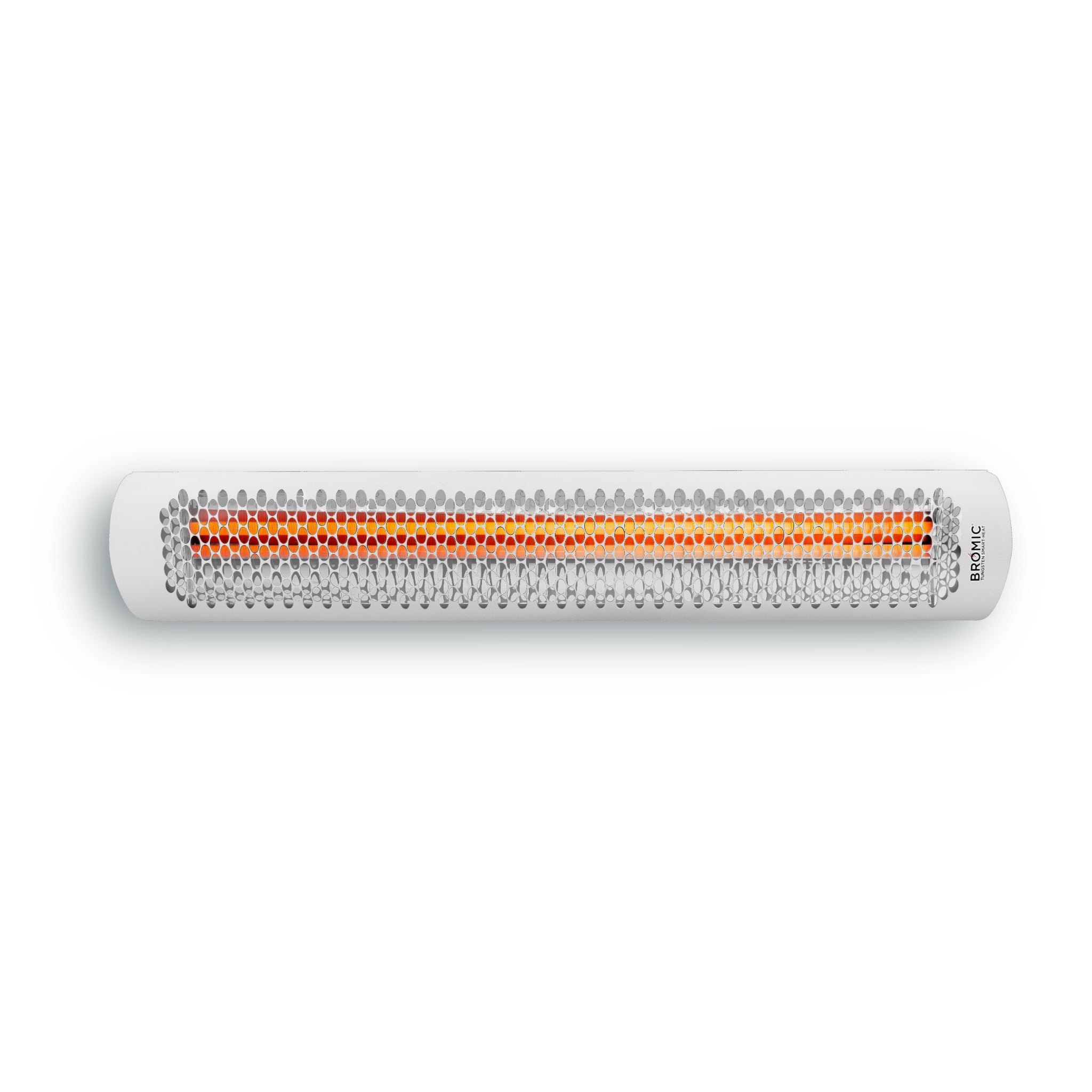

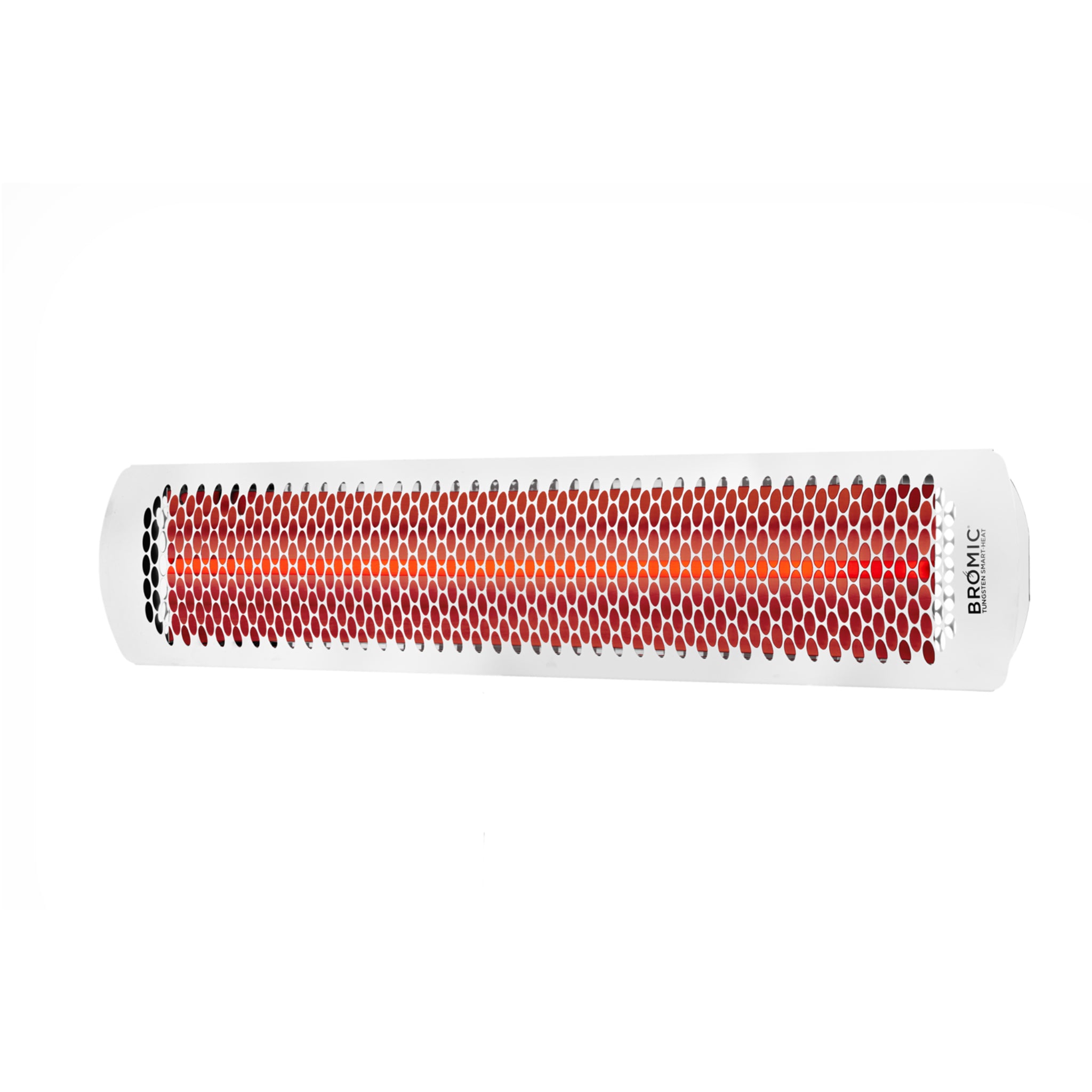

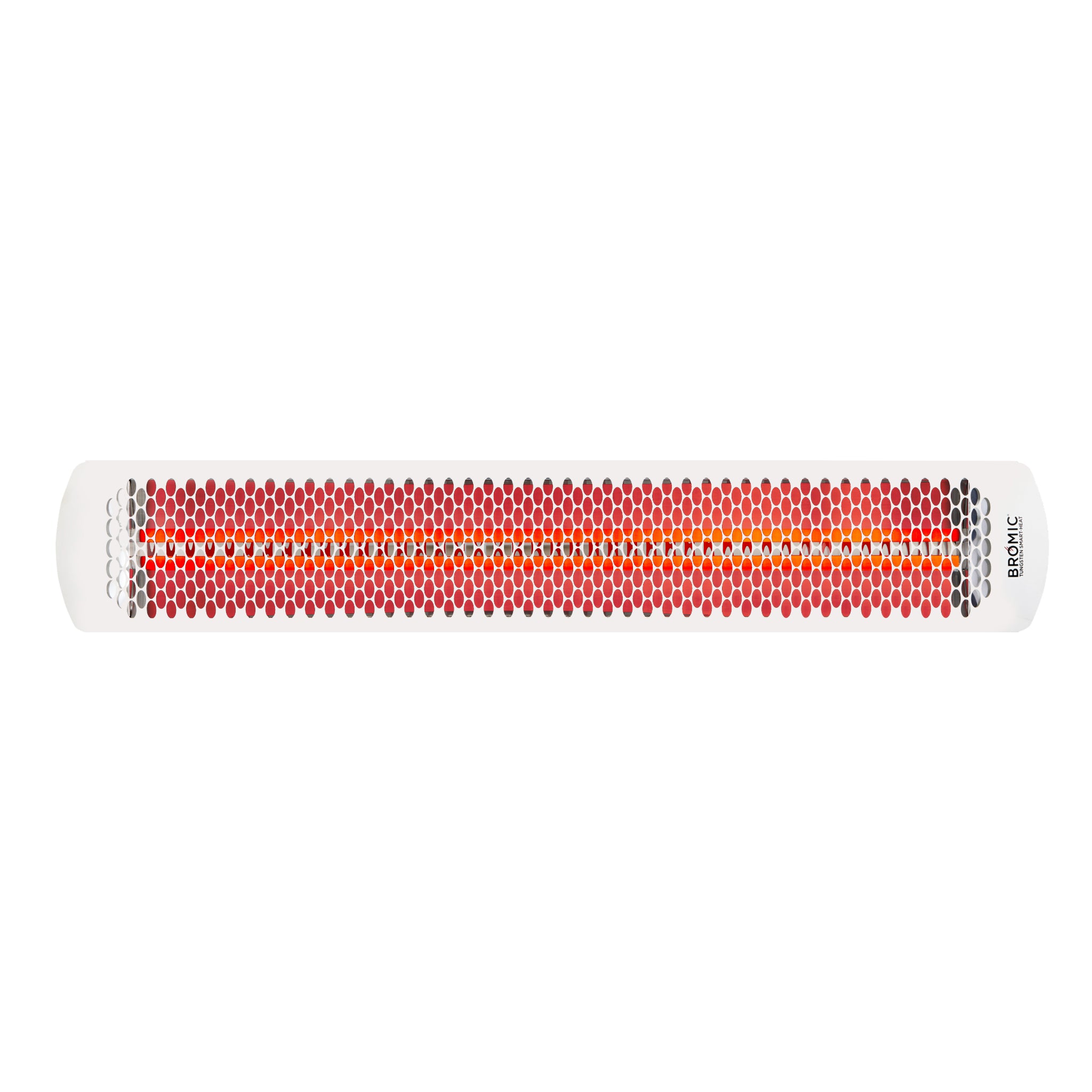

- Corrosion-resistant black or white finish options
- Adjustable mounting angle for precise heat placement
- Suitable for covered and exposed outdoor environments
- Free heater design service for your space available from TTH Concierge
Bromic Electric Heater Series Comparison
Compare Bromic’s electric heater collections to find the best fit for your outdoor space, installation needs, and design goals.
| Series | Best For | Available Models | Finish Options | Installation Options |
| Eclipse Electric | Design-forward spaces that need both heat and integrated LED lighting | 2900W pendant and freestanding models | Black | Pendant model can be ceiling or wall mounted; freestanding model available |
| Platinum Electric | Luxury patios, covered terraces, and architectural spaces where a slim profile matters | 2300W, 3400W, and 4500W models | Black and white glass | Ceiling, recessed ceiling, and wall mount options |
| Tungsten Electric | High-output residential, hospitality, and commercial outdoor heating applications | 2000W, 3000W, 4000W, and 6000W models | Black and white finishes | Ceiling, recessed ceiling, and wall mount options |
| Cobalt Electric | Commercial or industrial spaces needing durable stainless steel construction | 4000W and 6000W models | Stainless steel | Ceiling and wall mount options |
Not sure which series is right for your space? Platinum Electric is the most discreet architectural option, Tungsten Electric offers the broadest range of high-output models, Eclipse Electric adds integrated lighting, and Cobalt Electric is best suited for rugged commercial applications.
Specs
BROMIC TUNGSTEN SMART-HEAT OUTDOOR ELECTRIC PATIO HEATER SPEC SHEET
BROMIC TUNGSTEN SMART-HEAT OUTDOOR ELECTRIC PATIO HEATER MANUAL
| Specification | 2000 Series | 3000 Series | 4000 Series | 6000 Series |
|---|---|---|---|---|
| Fuel Type | Electric, Single Element |
Electric, Single Element |
Electric, Dual Element |
Electric, Dual Element |
| Dimensions | 44" x 8.5" | 56" x 8.5" | 44" x 8.5" | 56" x 8.5" |
| Weight | 20 lbs | 22 lbs | 20 lbs | 22 lbs |
| Model Numbers | BH0420030 (220–240V Black) |
-BH0420031 (220–240V Black) -BH0420038 (208V Black) |
-BH0420032 (220–240V Black) -BH0420042 (277V Black) -BH0420034 (208V Black) -BH0420012 (220–240V White) -BH0420044 (277V White) -BH0420037 (208V White) |
-BH0420033 (220–240V Black) -BH0420043 (277V Black) -BH0420035 (208V Black) -BH0420013 (220–240V White) -BH0420045 (277V White) -BH0420036 (208V White) |
| Heat Area | 65 ft² | 100 ft² | 130 ft² | 160 ft² |
| Rated Current | 240V / 8.3A 208V / 9.62A 277V / 7.22A |
240V / 12.5A 208V / 14.42A 277V / 10.83A |
240V / 16.6A 208V / 19.23A 277V / 14.44A |
240V / 25A 208V / 28.85A 277V / 21.66A |
| Minimum Floor Clearance | Wall: 72" (see note) Ceiling: 96" |
Wall: 72" (see note) Ceiling: 96" |
Wall: 72" (see note) Ceiling: 96" |
Wall: 72" (see note) Ceiling: 96" |
| Control Options | Affinity On/Off, Affinity Dimmer, Manual Wall Switch | Affinity On/Off, Affinity Dimmer, Manual Wall Switch | Affinity On/Off, Affinity Dimmer, Manual Wall Switch | Affinity On/Off, Affinity Dimmer, Manual Wall Switch |
| Approval Certification | Intertek ETL / cETL 4005951 | |||
| Warranty | 2 years (heater) | 7 years (heating elements) | |||
Note: Minimum floor clearance for wall installations is 96" in Canada.
California Proposition 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
FAQ
HOW IS THE BUILT-IN HEATER CONTROLLED?
The built-in heater can be hardwired or controlled using Bromic Smart-Heat On/Off or Dimmer controls for precise heat management.
WHAT CLEARANCE IS REQUIRED FROM ADJACENT CEILING FANS?
A minimum side clearance of 3 feet from combustibles is required. Always follow the installation manual for exact clearance requirements.
DOES THE BUILT-IN HEATER COME WITH CEILING BRACKETS?
Yes. The heater includes brackets for wall or ceiling mounting. A ceiling recess kit is available separately for a flush-mounted installation.
ARE THE OUTDOOR HEATING APPLIANCES ADJUSTABLE IN TEMPERATURE AND OUTPUT?
Yes. The 4000W and 6000W models feature dual heating elements that can be controlled independently to adjust heat output as needed.
ARE THE OUTDOOR HEATERS WATERPROOF?
The Tungsten Electric series has an IPX4 water ingress rating. While suitable for outdoor use, Bromic recommends installing under cover and avoiding direct exposure to rain, snow, or salt mist to preserve appearance and longevity.
HOW DO I KNOW IF I NEED THE 208V OR 220–240V VERSION?
220V–240V is standard for most residential installations and uses two 120V lines. 208V is typically found in commercial or multi-unit buildings with three-phase power. An electrician can confirm your available voltage.
HOW MANY OUTDOOR HEATING APPLIANCES DO I NEED?
The number required depends on your space size, layout, mounting height, and heater wattage. Larger or open areas may require multiple units for even heat coverage. Please send us an email if you would like help with your design.
WHAT IS THE DIFFERENCE BETWEEN INFRARED AND RADIANT HEATERS?
There is no difference. Infrared heaters are radiant heaters. They heat people and objects directly rather than warming the surrounding air, making them more efficient outdoors.
HOW ENERGY EFFICIENT ARE BUILT-IN ELECTRIC RADIANT HEATERS?
Efficiency depends on layout and placement. Directional infrared technology maximizes heat absorption by occupants rather than wasting energy on unused space.
CAN AN OUTDOOR RADIANT HEATING APPLIANCE BE LEFT ON ALL NIGHT?
Bromic heaters are designed for intermittent use. For safety and energy efficiency, turn the heater off when not in use. Timers or control systems can help regulate operation.
HOW DURABLE ARE TUNGSTEN OUTDOOR BUILT-IN HEATERS?
Tungsten heaters are built for durability with stainless steel construction and high-temperature coatings. Regular cleaning and proper installation help extend product life.
ARE BROMIC TUNGSTEN OUTDOOR HEATERS GOOD?
Yes. The Tungsten collection is known for high output, industrial design, and reliability. It is available in electric, gas, and freestanding options for residential and commercial use.
DO TUNGSTEN OUTDOOR HEATING APPLIANCES NEED VENTILATION?
Electric Tungsten heaters do not require ventilation. Gas and freestanding Tungsten models do require ventilation. Always follow the installation manual for safety requirements.
