Description

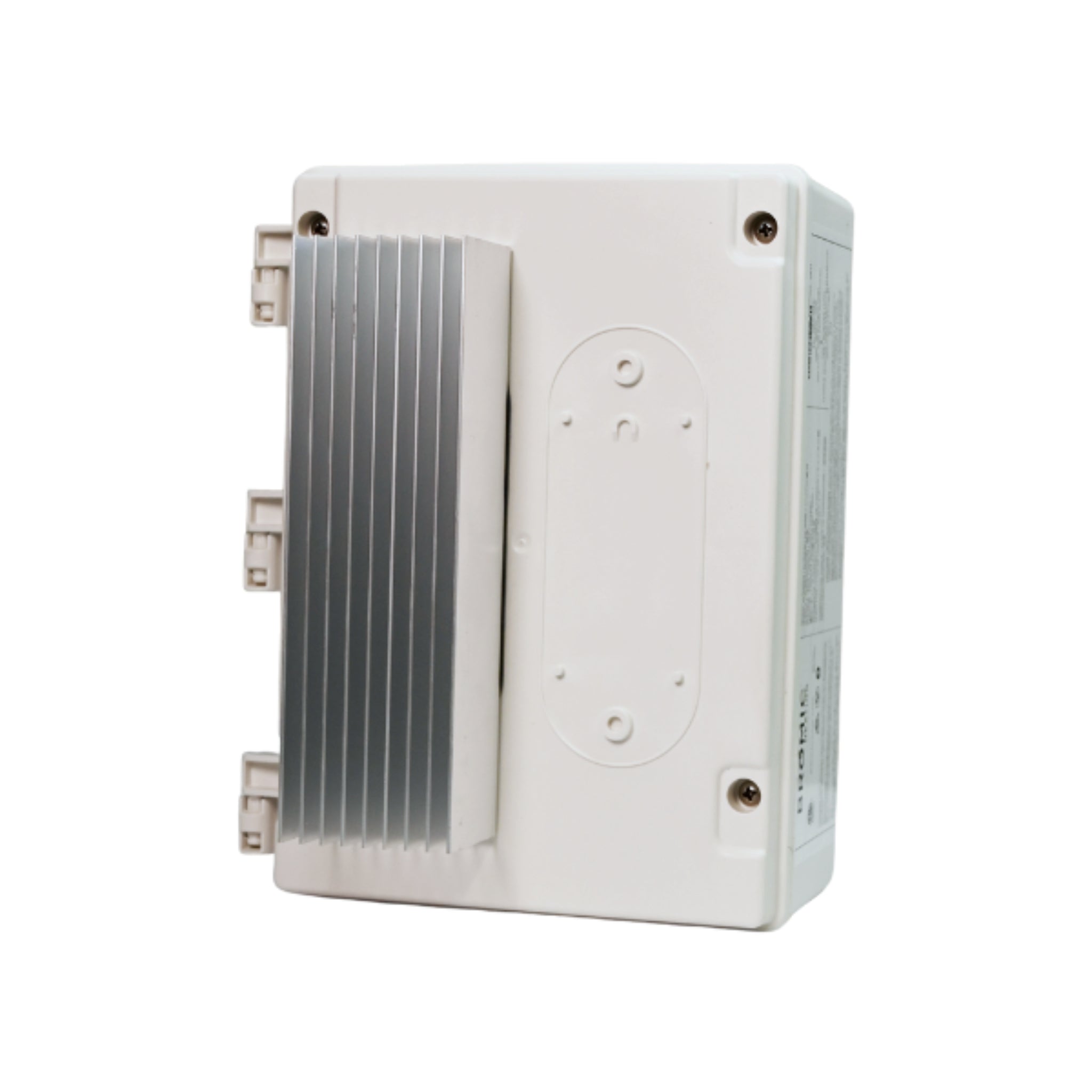

The Bromic Affinity Smart-Heat™ Dimmer Controllers deliver advanced, precision control for Bromic electric outdoor heaters, allowing users to fine-tune heat output in 1 percent increments for optimal comfort and efficiency. Designed exclusively for Bromic Platinum Electric and Tungsten Electric heaters, the Affinity Dimmer series offers a higher level of customization than standard on/off controls. These Dimmers provide precise, incremental control of electric heat output. Gas heaters are not compatible with dimming technology and require Affinity On/Off controls instead.

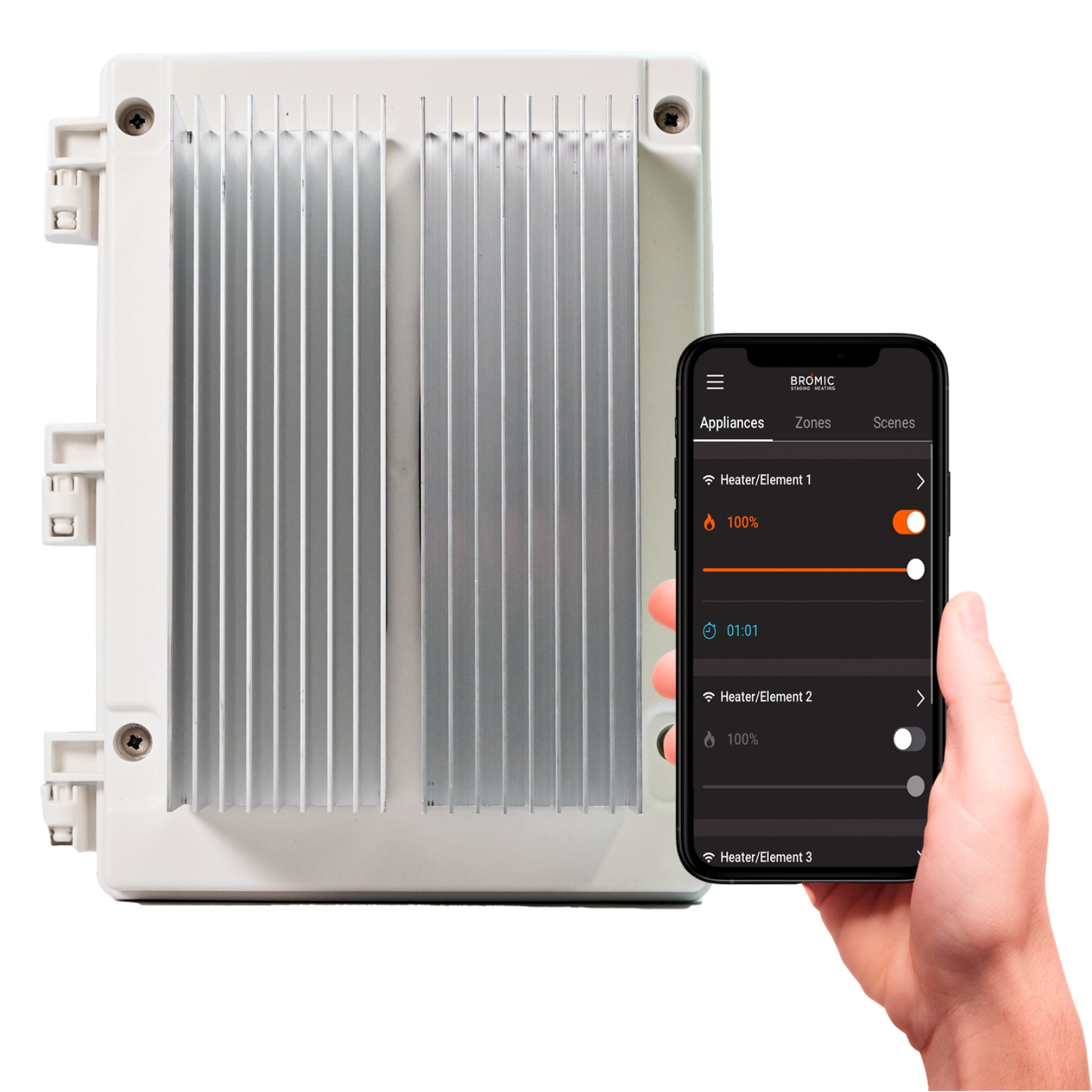

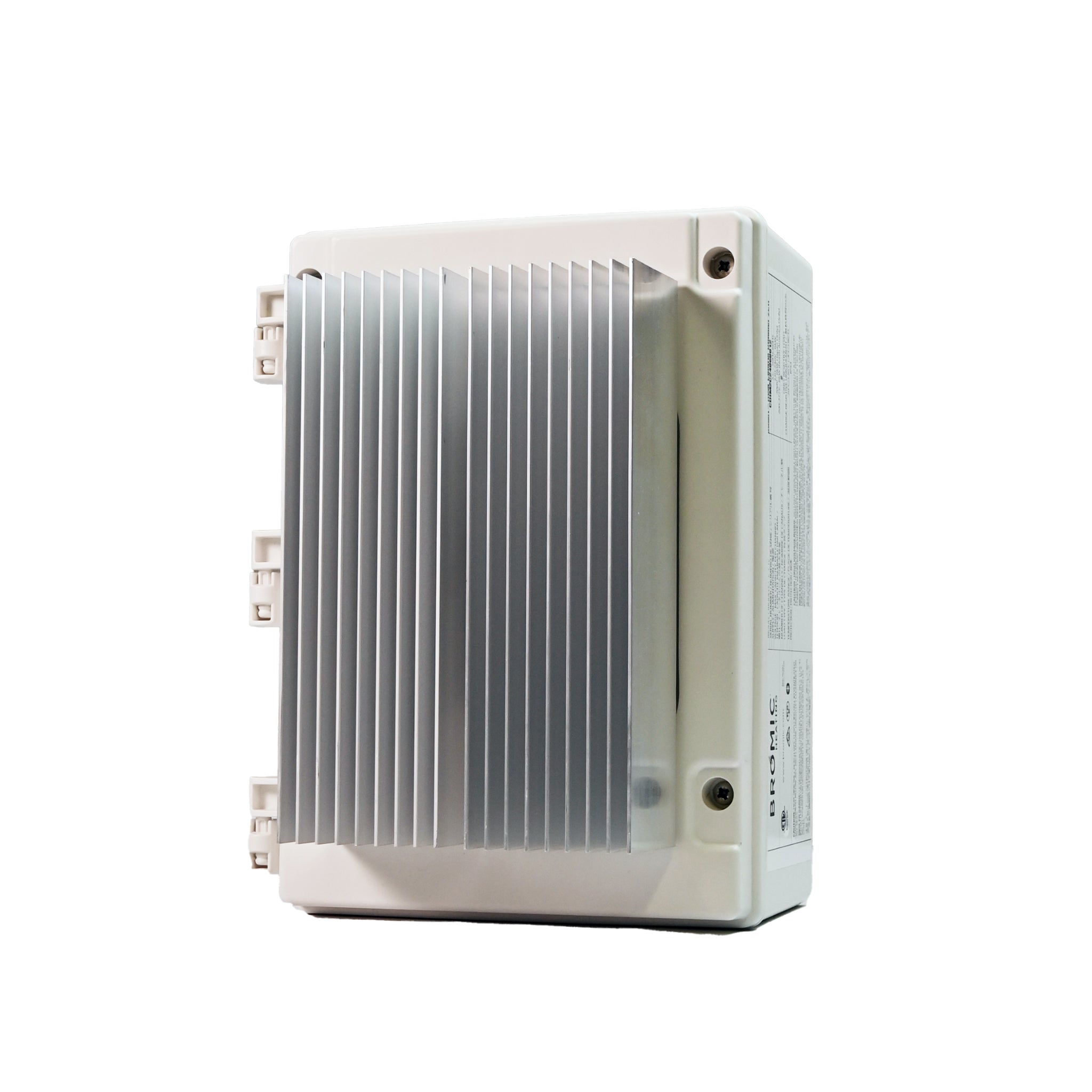

Available in 1-channel, 2-channel, and 5-channel configurations, each channel supports up to 6000W of electric heating. This makes the system ideal for everything from single residential patios to large commercial outdoor environments requiring zoned heating control. Built-in Wi-Fi and Bluetooth connectivity enables full system management through the Bromic Heating App, including heat adjustment, scheduling, zone creation, and multi-heater coordination.

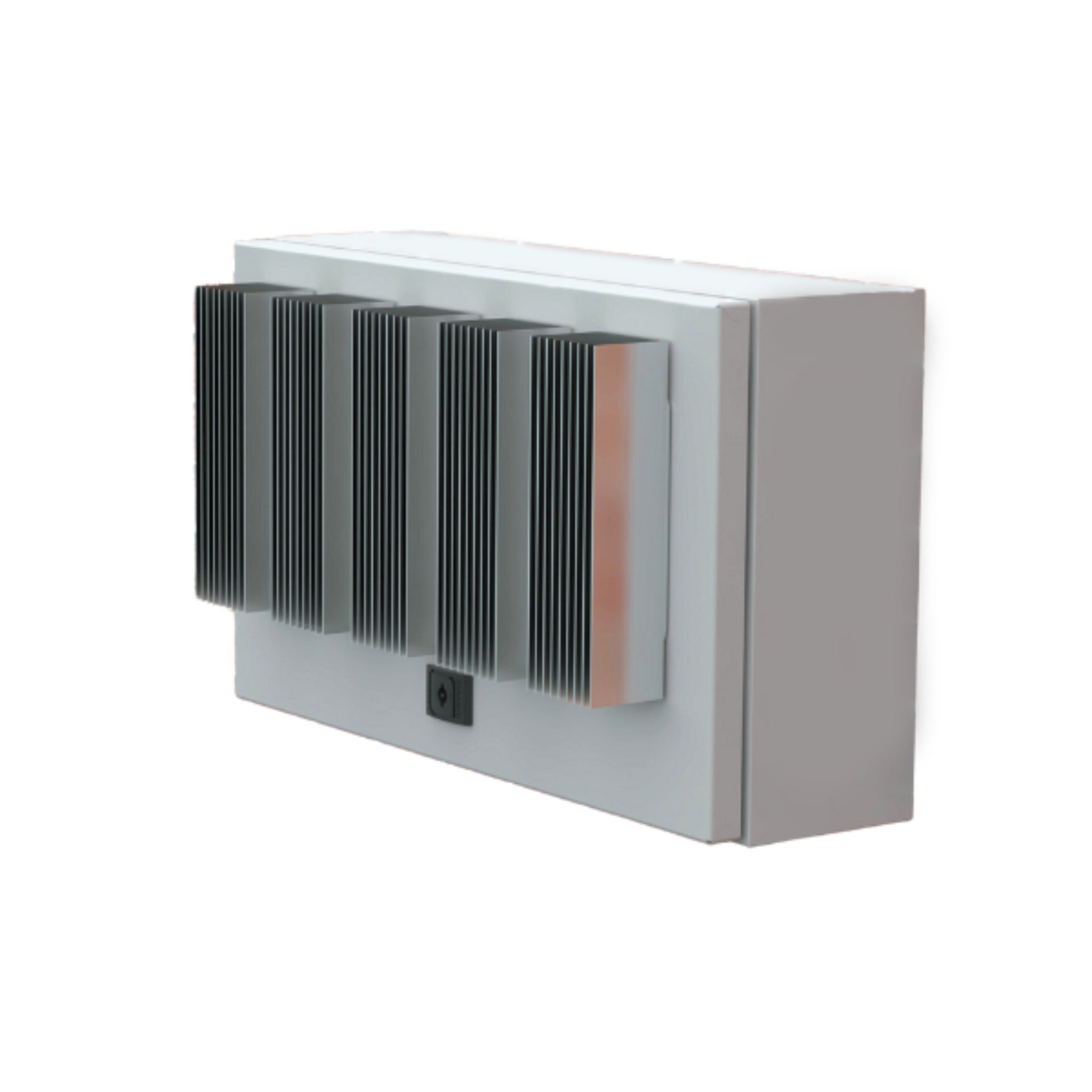

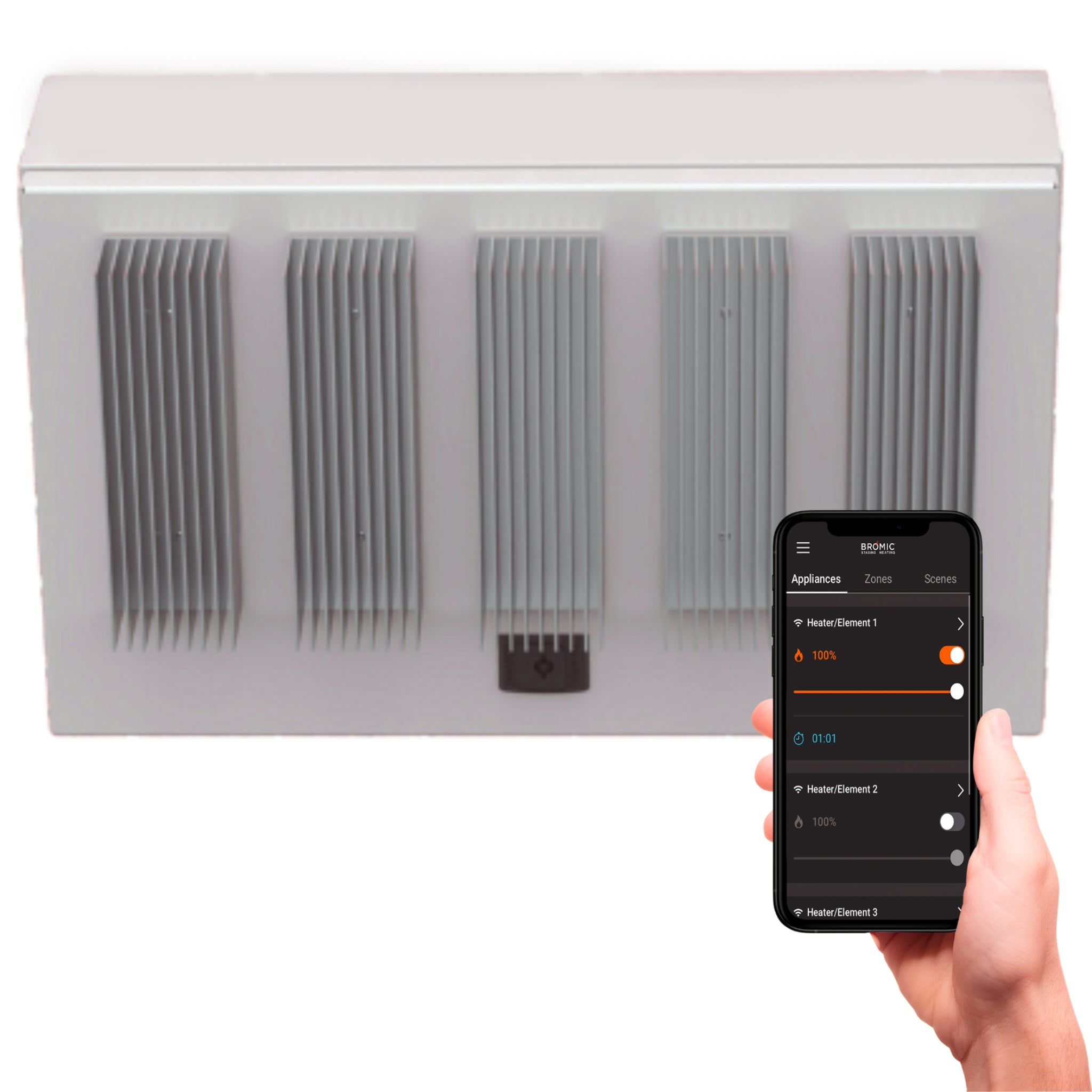

The 5-channel dimmer includes an expansion board for Ethernet and 0–10V integration, allowing seamless connection to home automation and building management systems. Housed in a durable, weather-resistant enclosure with an IP54 rating, the Affinity Smart-Heat™ Dimmer Controllers are engineered for reliable outdoor performance in demanding residential and commercial installations.
TTH offers a free heater design service that will help you choose the right heaters for your space. Contact our Concierge Team to start your design plan today.
Features
- Compatible with Bromic Platinum Electric and Tungsten Electric heaters
- Not compatible with gas heaters
- Available in 1-channel, 2-channel, and 5-channel configurations
- Each channel controls up to 6000W of electric heating
- Precision heat adjustment in 1 percent increments
- Wi-Fi and Bluetooth enabled for app-based control
- Control via the Bromic Heating App
- Supports heater zones, grouping, timers, and schedules
- Multi-user and multi-site management
- 5-channel model includes expansion board for Ethernet and 0–10V integration
- IP54-rated weather-resistant enclosure for outdoor use
- Free heater design service for your space available from TTH Concierge
Specs
BROMIC AFFINITY SMART-HEAT DIMMER ELECTRIC HEATER CONTROLER SPEC SHEET
BROMIC AFFINITY SMART-HEAT DIMMER & CONTROLS GUIDE
| MODEL |
1 CHANNEL |
2 CHANNEL |
5 CHANNEL |
| Part Number |
BH3130061 |
BH3130062 |
BH3130063 |
| Number of Channels |
1 |
2 |
5 |
| Max Wattage per Channel |
6000W |
6000W |
6000W |
| Voltage |
208V–277V |
208V–277V |
208V–277V (3-Phase) |
| IP Rating |
IP54 |
IP54 |
IP54 |
| Weight |
3.1 lbs |
3.6 lbs |
27.6 lbs |
| Connectivity |
Wi-Fi (2.4GHz), Bluetooth |
Wi-Fi (2.4GHz), Bluetooth |
Wi-Fi, Bluetooth, Ethernet |
| Heater Compatibility |
Platinum Electric, Tungsten Electric |
Platinum Electric, Tungsten Electric |
Platinum Electric, Tungsten Electric |
| Warranty |
1 Year |
1 Year |
1 Year |
