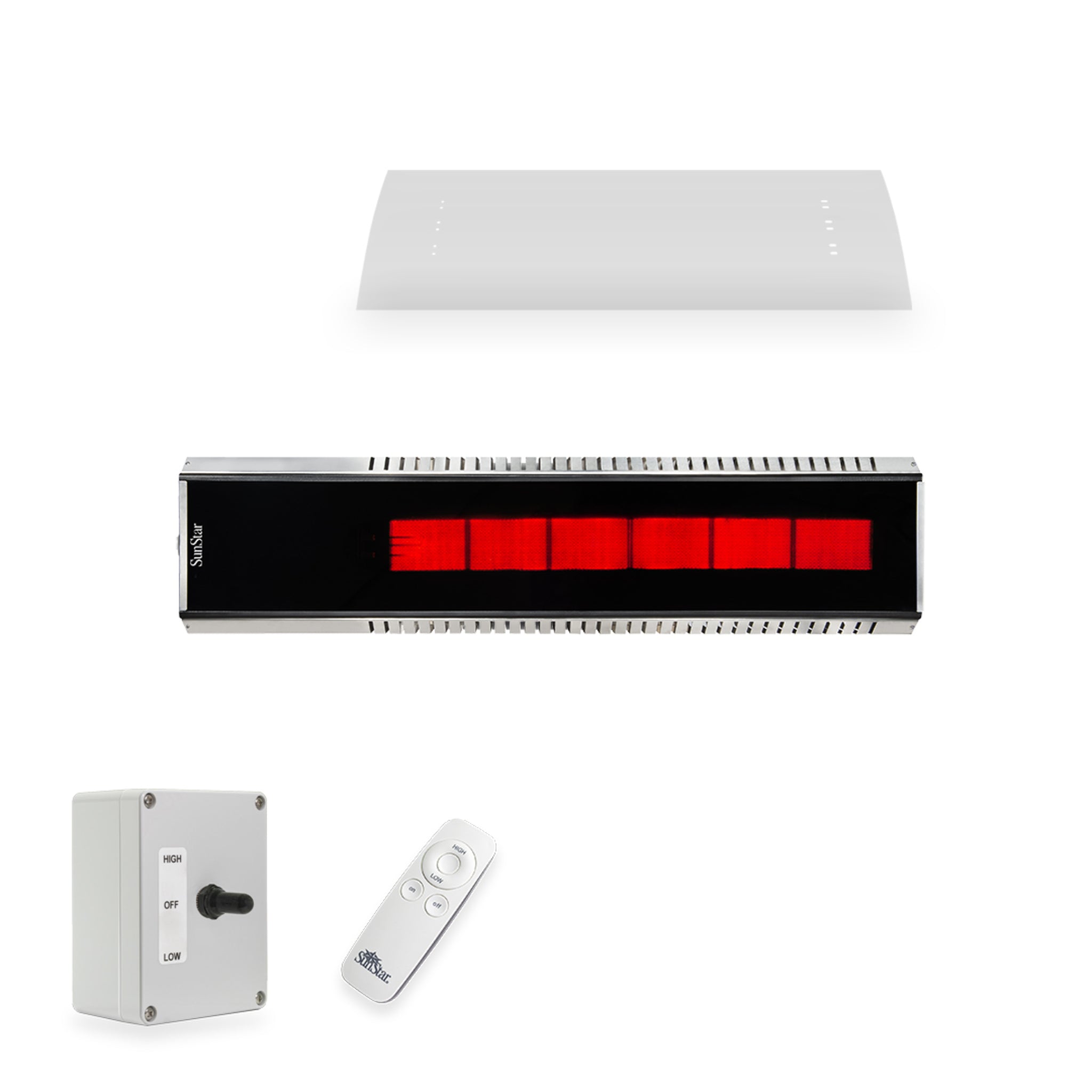

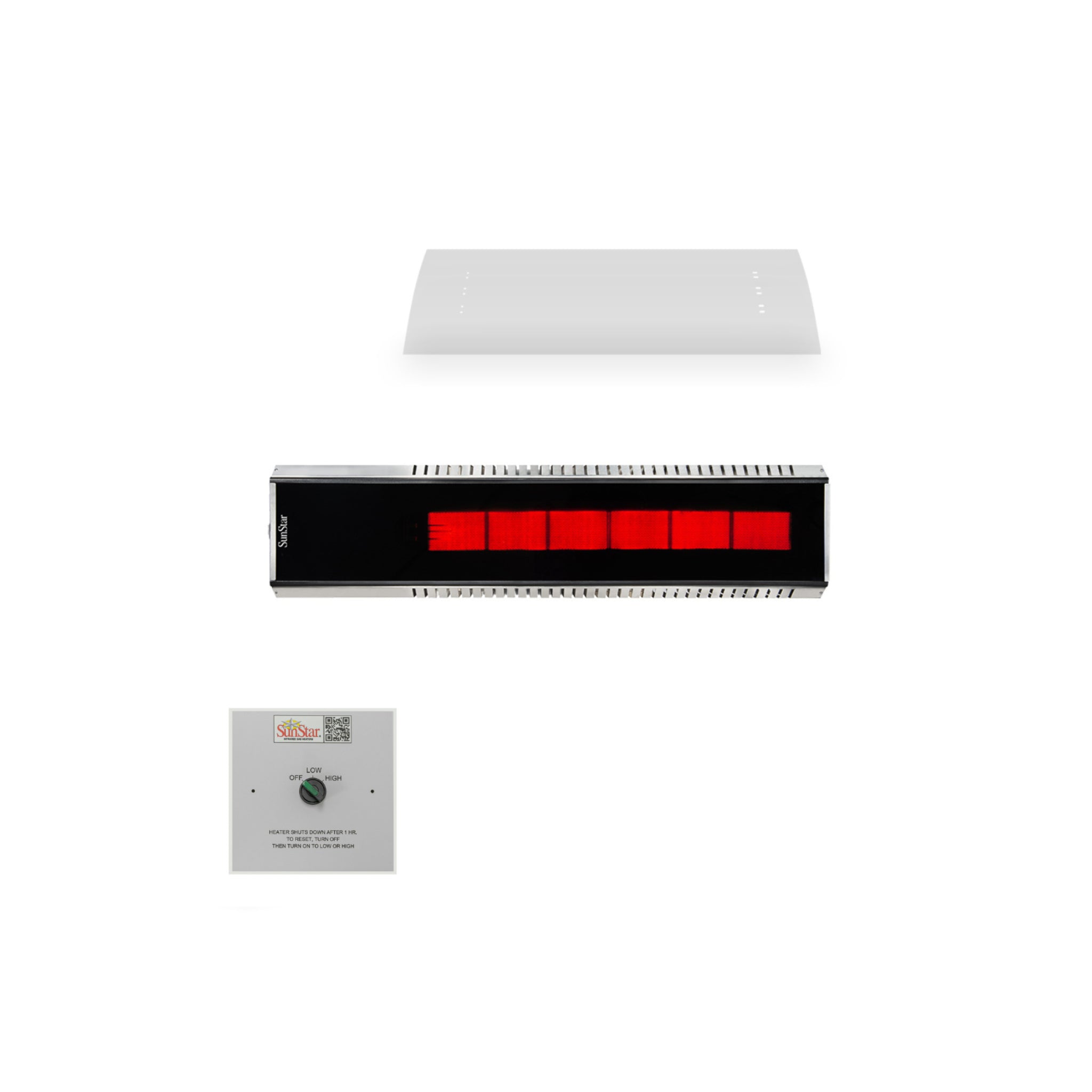

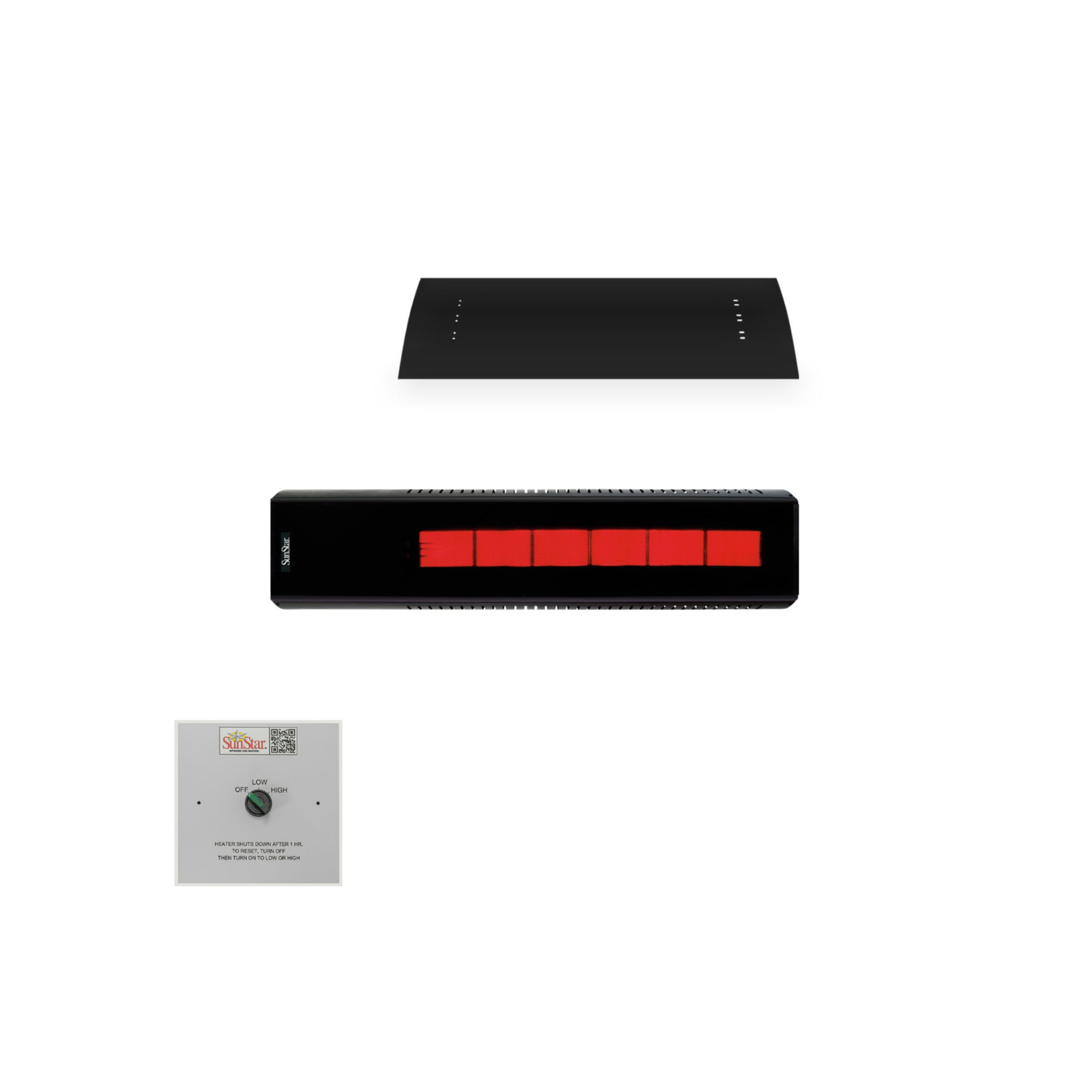

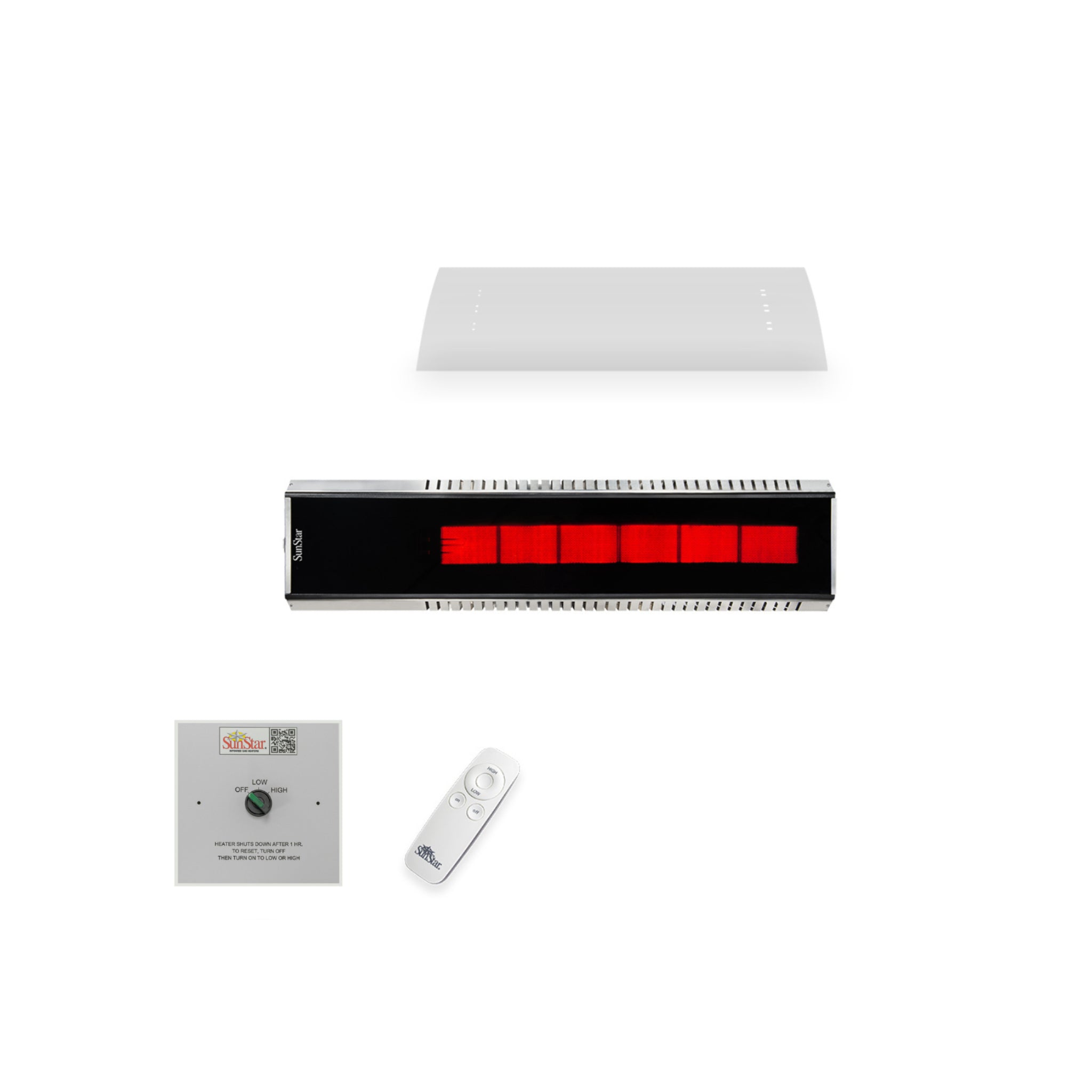

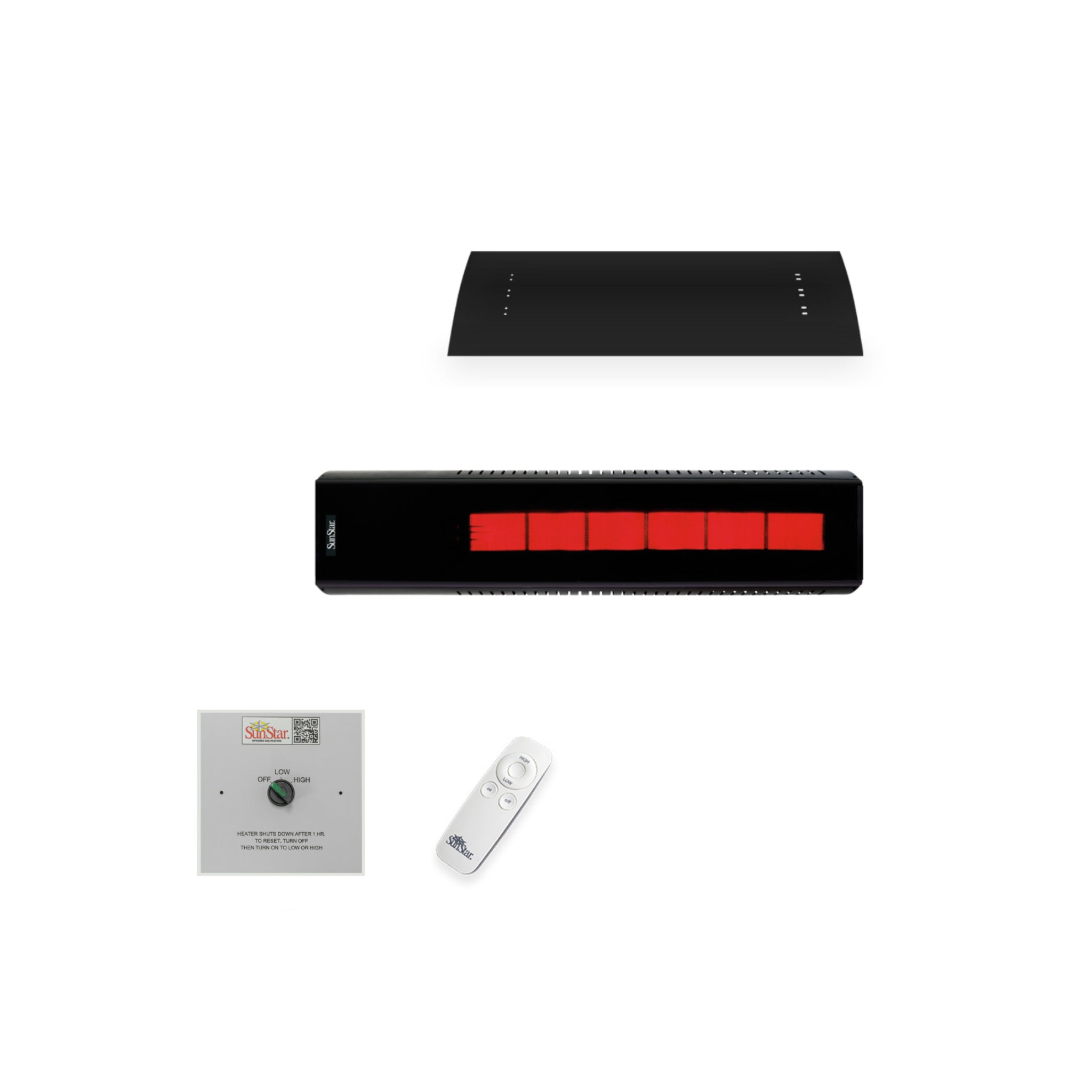

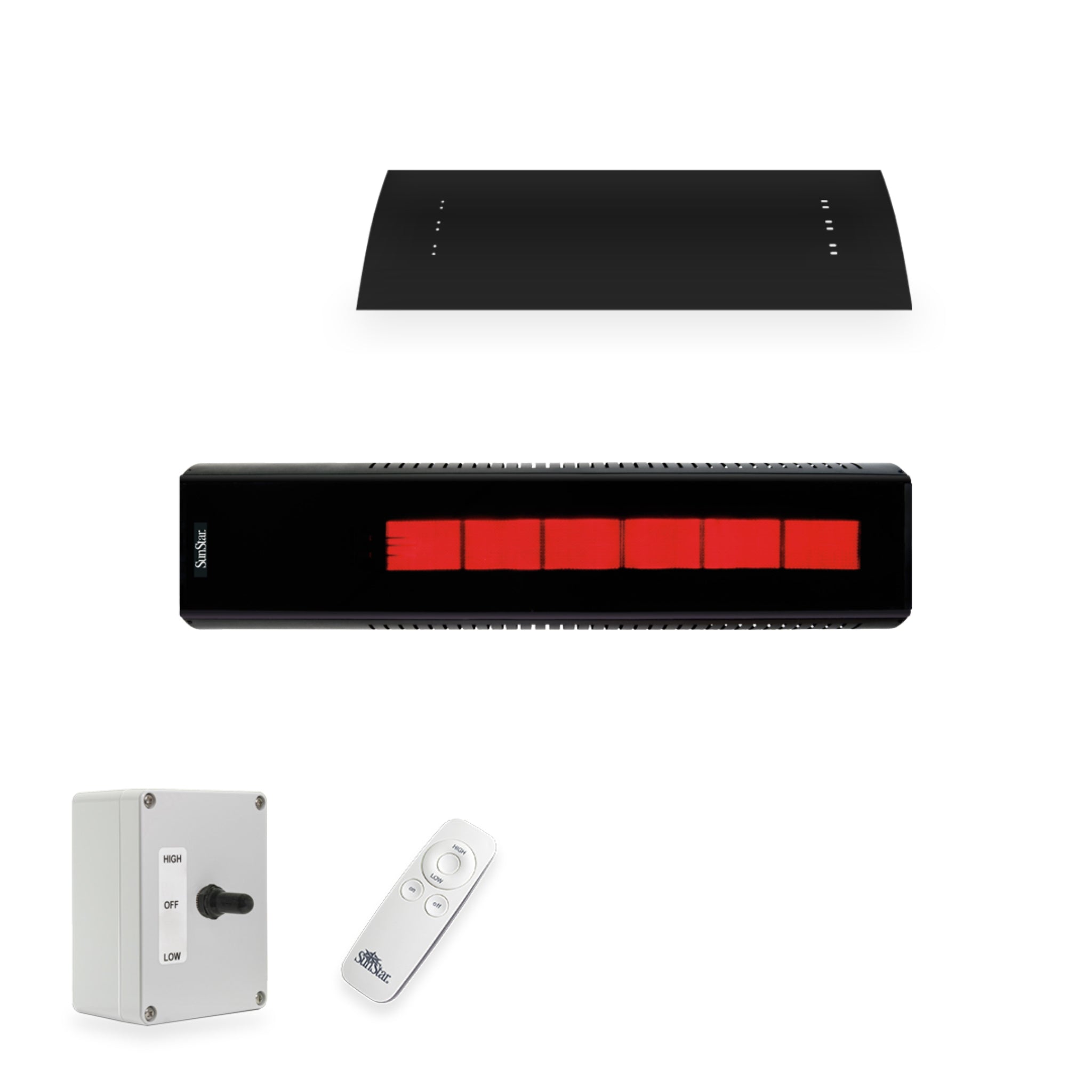

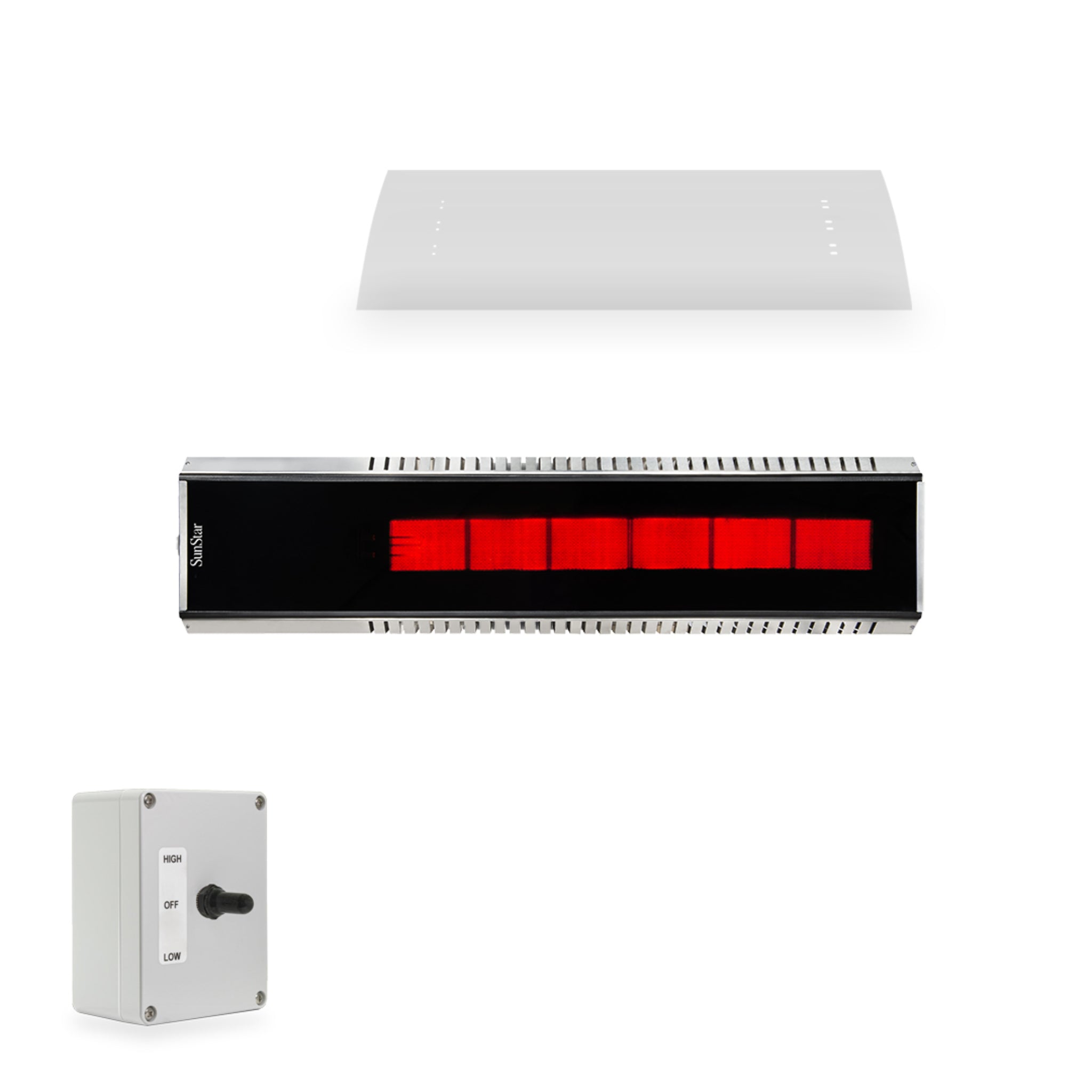

SunStar® Horizontal Mount Gas Patio Heater | 24K-35K BTU
Free Standard Shipping
Description
The SunStar Horizontal Mount Gas Patio Heater delivers efficient radiant infrared heat for patios, restaurants, and outdoor living spaces that require low-profile ceiling installation. With 24,000 or 35,000 BTU configurations, this two-stage heater is designed for fixed horizontal mounting and provides direct warmth to people and surfaces rather than heating the surrounding air. Mounted at zero degrees with a required clearance shield and 10-inch fixed mounting kit, this heater maintains safe clearances in tighter patio layouts. The glass front face blends into most décor, while the compact 48-inch length integrates easily along beams, soffits, and ceiling structures. Ideal for covered patios, pergolas, outdoor kitchens, and restaurant seating areas.
SunStar heaters are available with four wall control configurations so you can choose the setup that fits your space. The standard wall switch provides simple ON and OFF operation. The wall switch with remote adds handheld control for added convenience. The wall switch with built-in 60-minute timer is a recessed switch option with lumination. It offers LOW and HIGH heat settings with an automatic shutoff for applications that require timed use (available as the standalone switch or switch + remote).
All models share the same heating performance. Choose your heater based on fuel type, control preference, and finish:
- Fuel Type: Natural Gas ("N" models) or Propane ("L" models)
- Control Type: Wall switch only ("7" models) or wall switch plus wireless remote ("10" models)
- Finish: SGL black glass-front steel cabinet or MGL 316 marine-grade stainless steel cabinet
IDEAL APPLICATIONS:
- Restaurant patios and outdoor dining areas
- Covered patios and pergolas
- Resort and hospitality seating areas
- Outdoor kitchens and lounge spaces
- Commercial terraces and rooftop seating
- Homes requiring low-profile ceiling-mounted heating
WHICH SUNSTAR CONFIGURATION IS RIGHT FOR YOU?
| CONFIGURATION | BEST FOR | TYPICAL USE |
| Standard Output 24K–35K BTU |
Most residential patios | Covered patios, pergolas, outdoor kitchens |
| Commercial High Output 34K–50K BTU |
Larger or commercial spaces | Restaurants, hospitality, high ceilings |
| Horizontal Mount | Broad overhead coverage | Flat ceiling installations |
| Angled Mount | Targeted directional heat | Seating and dining areas |
Features
- Two-stage heat output with low (24,000 BTU) and high (35,000 BTU) settings for flexible comfort and fuel savings
- 0° fixed horizontal mounting with required clearance shield and 10" fixed mounting kit for reduced clearances to combustibles
- Available in natural gas or liquid propane with direct-spark ignition and automatic re-light
- Choice of black glass-front SGL series or 316 marine-grade stainless MGL series for coastal or high-humidity environments
- Control options include a 3-position wall switch or wall switch plus wireless handheld remote
- Recommended mounting heights from 8 to 11 feet for horizontal installations, with coverage roughly 10' x 10' on low and up to 12' x 12' on high, depending on conditions
- Wind resistant up to 40 mph when installed to manufacturer clearances
- Outdoor-rated and CSA design certified for residential and commercial use
- Made in the USA
Specs
These heaters are designed for covered outdoor areas such as patios, verandas, and outdoor dining spaces. Always follow the manufacturer installation manual for gas line sizing, electrical requirements, mounting hardware, and clearances to combustibles.
TYPICAL CLEARANCES TO COMBUSTIBLES - HORIZONTAL MOUNT (SGL GLASS SERIES)
The table below shows typical minimum clearances for SGL glass series heaters. Installers must always confirm with the latest SunStar® installation instructions and local codes.
| MOUNTING ANGLE | CEILING | CEILING W/SHIELD* | BACK | SIDE | END | BELOW | FRONT |
| 0° (horizontal) | 20 in | 10 in | N/A | 24 in | 12 in | 40 in | 48 in |
*Values with shield apply when the required clearance shield is installed. Indoor installations require different clearances; see the SunStar® installation manual for details.
SPECIFICATIONS
| Brand | SunStar® |
| Series | SGL Black Glass Series or MGL Stainless Series |
| Model Numbers |
N7 SGL0, N10 SGL0, L7 SGL0, L10 SGL0, N7 MGL0, N10 MGL0, L7 MGL0, L10 MGL0 For Spec Sheet Model Clarification: |
| Fuel Type | Natural gas or liquid propane |
| BTU Output | 24,000 BTU (low) / 35,000 BTU (high), two-stage |
| Mounting | 0° fixed horizontal wall or ceiling mount with required clearance shield and 10" fixed mounting kit |
| Recommended Mounting Height | Approx. 8 to 11 ft for typical outdoor installations |
| Coverage Area | Approx. 10 ft x 10 ft (low) to 12 ft x 12 ft (high), depending on conditions |
| Ignition | Direct spark ignition with auto re-light and flame sensing |
| Cabinet Construction | High-temp black aluminized steel (SGL) or 316 marine-grade stainless steel (MGL) |
| Dimensions | 9.5 in H x 11.5 in W x 48 in L |
| Electrical | 120 VAC, 60 Hz (controls and ignition) |
| Wind Resistance | Tested to 40 mph wind when installed to specified clearances |
| Certifications | CSA design certified (Z83.19 / Z83.26) |
| Warranty | 3 year limited warranty on burner assembly and 1 year limited warranty on controls |
| Country of Origin | Made in USA |
California Proposition 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
FAQs
WHAT IS THE DIFFERENCE BETWEEN THE HORIZONTAL AND ANGLED MOUNT SUNSTAR HEATERS?
Horizontal mount models install flat at a fixed 0° angle and are ideal for higher ceilings or broad overhead coverage. Angled mount models adjust from 15° to 60°, allowing heat to be directed more precisely into seating and dining areas.
WHAT IS THE DIFFERENCE BETWEEN THE STANDARD AND COMMERCIAL HIGH OUTPUT MODELS?
Standard SunStar heaters provide 24,000 BTU low and 35,000 BTU high settings, making them ideal for most residential patios and smaller hospitality spaces. Commercial high output models increase performance to 34,000 BTU low and 50,000 BTU high for larger patios, higher mounting heights, and commercial environments requiring wider heat coverage.
DO SUNSTAR HEATERS WARM THE AIR OR PEOPLE DIRECTLY?
SunStar infrared patio heaters warm people and surfaces directly rather than heating the surrounding air. This creates more efficient outdoor comfort compared to traditional mushroom-style patio heaters, especially in cooler temperatures and partially open environments.
CAN THESE HEATERS BE USED IN WINDY CONDITIONS?
Yes. SunStar heaters are tested for operation in winds up to 40 mph when installed according to manufacturer clearances and mounting requirements. Covered patios and partially protected outdoor spaces typically provide the best heating performance.
ARE THESE HEATERS SAFE FOR COVERED PATIOS AND PERGOLAS?
Yes. These heaters are specifically designed for covered outdoor environments such as patios, pergolas, verandas, outdoor kitchens, restaurant seating areas, and hospitality terraces. Always follow the manufacturer installation manual and required clearances to combustibles.
WHAT IS THE DIFFERENCE BETWEEN THE SGL AND MGL SERIES?
The SGL series features a black glass-front aluminized steel cabinet designed for most residential and commercial installations. The MGL series upgrades to a 316 marine-grade stainless steel cabinet, making it a better option for coastal environments, humid climates, and locations exposed to salt air.
SHOULD I CHOOSE NATURAL GAS OR PROPANE?
Natural gas models are ideal for permanent installations connected to a home or commercial gas line. Propane models are often selected when natural gas is unavailable or for installations using dedicated propane supply systems.
CAN THESE HEATERS BE USED FOR COMMERCIAL RESTAURANT PATIOS?
Yes. SunStar heaters are commonly used in restaurants, resorts, hospitality lounges, rooftop patios, bars, and commercial outdoor dining spaces due to their efficient radiant heat output, low-profile design, and commercial-grade construction.
HOW MANY HEATERS DO I NEED FOR MY PATIO?
The number of heaters required depends on patio size, ceiling height, wind exposure, and whether the space is partially enclosed. As a general guideline, standard models typically cover approximately 8' x 8' to 12' x 12', while commercial high output models can cover up to approximately 14' x 14' depending on installation conditions.
DO SUNSTAR HEATERS REQUIRE PROFESSIONAL INSTALLATION?
Yes. Professional installation by a qualified licensed contractor is strongly recommended. Installation includes gas connections, electrical wiring, mounting hardware, clearances, and compliance with local building and fuel gas codes.
CAN THESE HEATERS BE CONTROLLED REMOTELY?

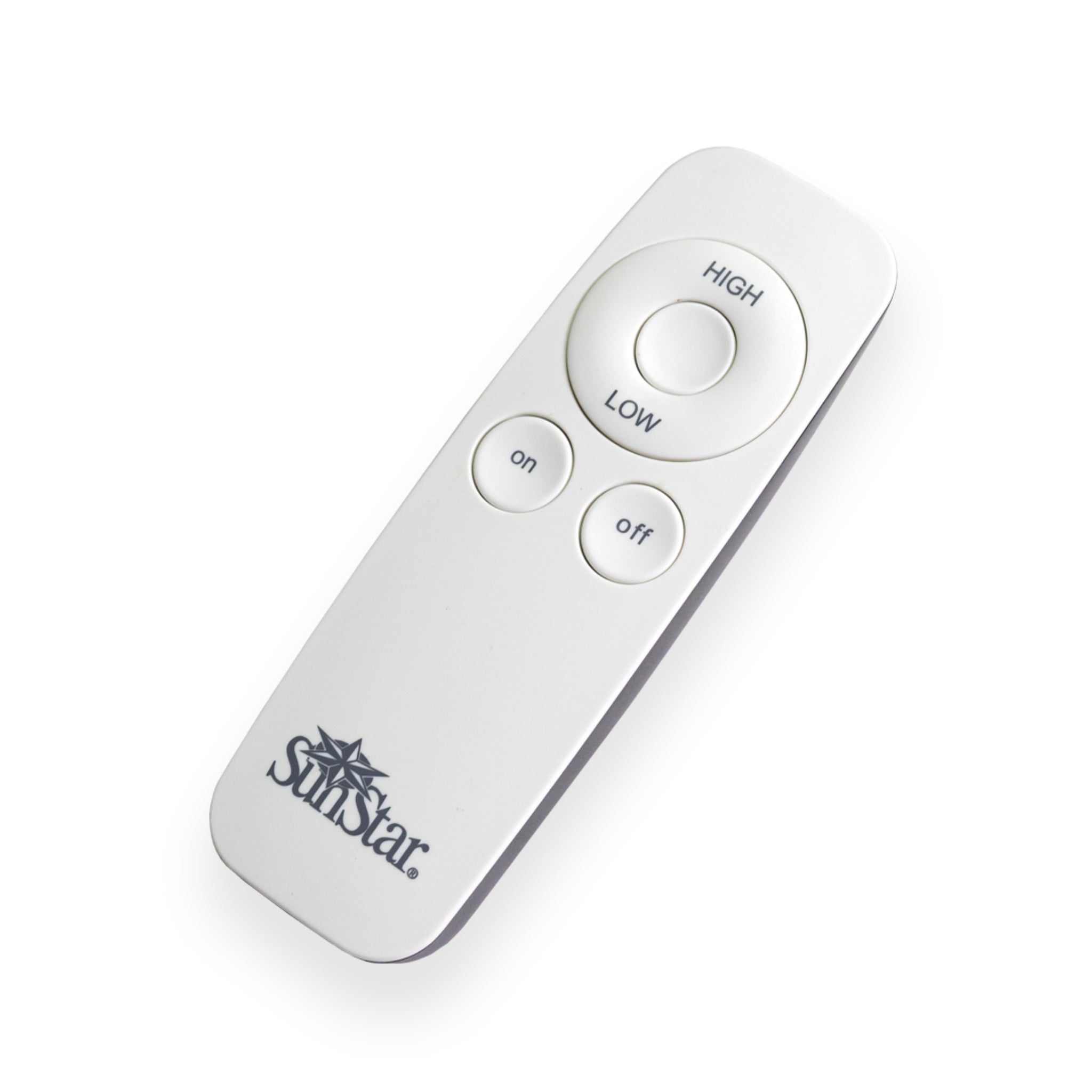

Yes. Select SunStar models include a wireless handheld remote in addition to wall controls. Remote-equipped models are identified by “10” in the model number.
ARE SUNSTAR HEATERS MADE IN THE USA?
Yes. SunStar gas patio heaters are manufactured in the USA and are CSA design certified for residential and commercial outdoor heating applications.
