Description
Estimated delivery time is 1-2 weeks.

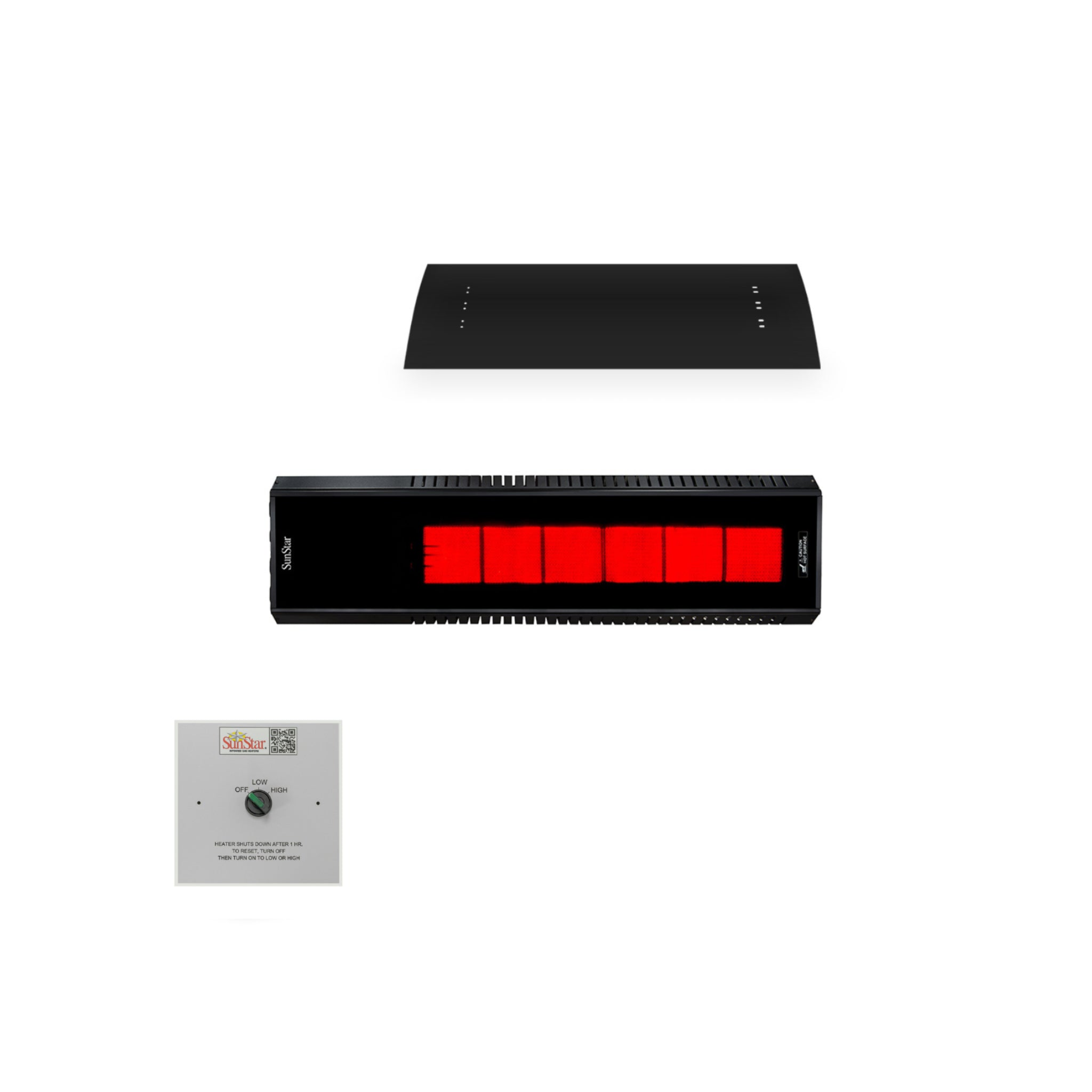

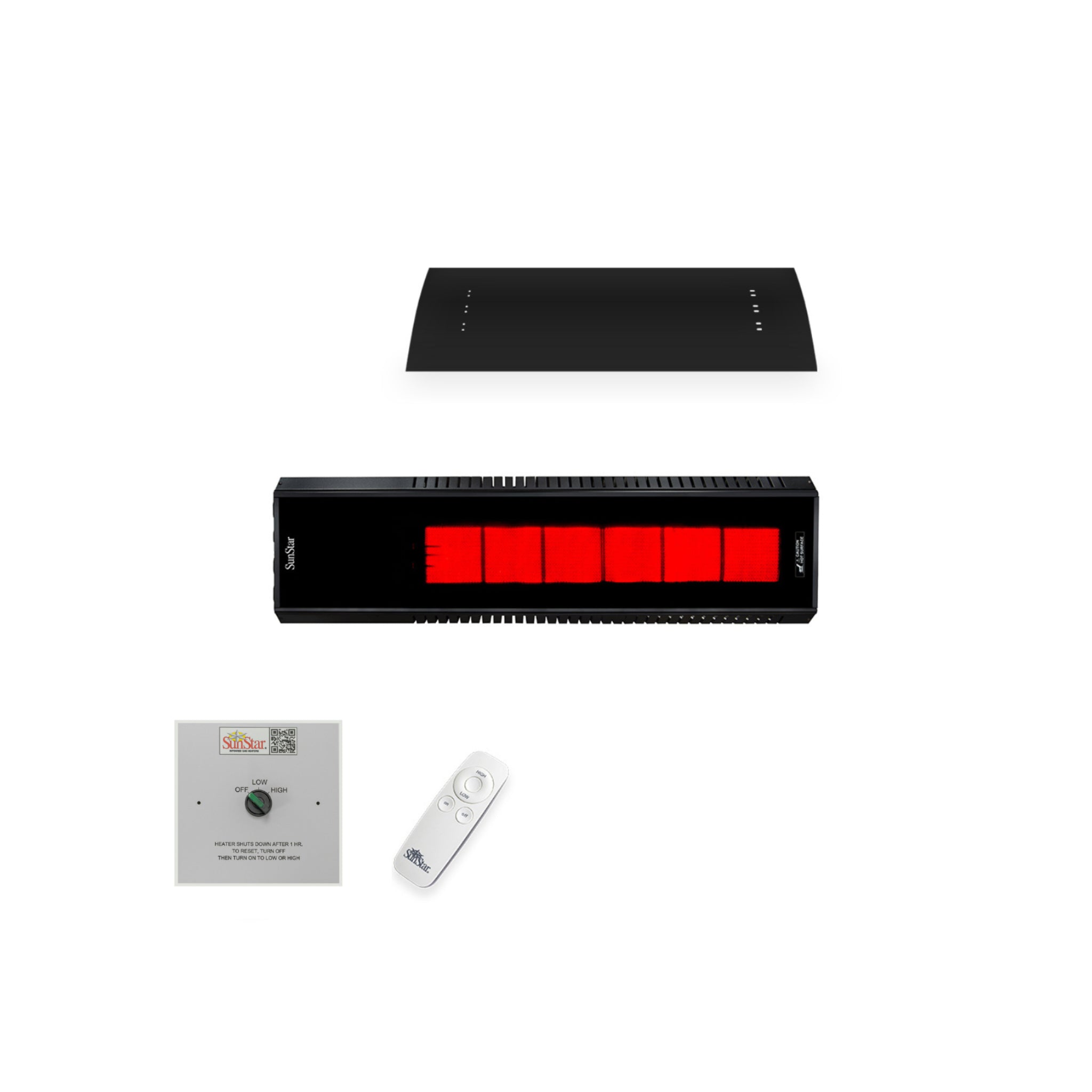

The SunStar Commercial High Output Horizontal Mount Gas Patio Heater delivers powerful radiant heat for large patios, high ceilings, and demanding commercial outdoor environments. Available in 34,000 or 50,000 BTU configurations, this two-stage gas heater is designed for flat, horizontal installations where clearance and coverage matter most. Mounted at zero degrees with an included heat shield and 10-inch fixed mounting kit, this heater maintains safe clearances in tight ceiling conditions. The 48-inch black glass front cabinet blends into upscale outdoor designs while providing wide, even heat coverage. Ideal for dining areas, restaurants, resorts, lounges, bars, and hospitality and commercial seating spaces.

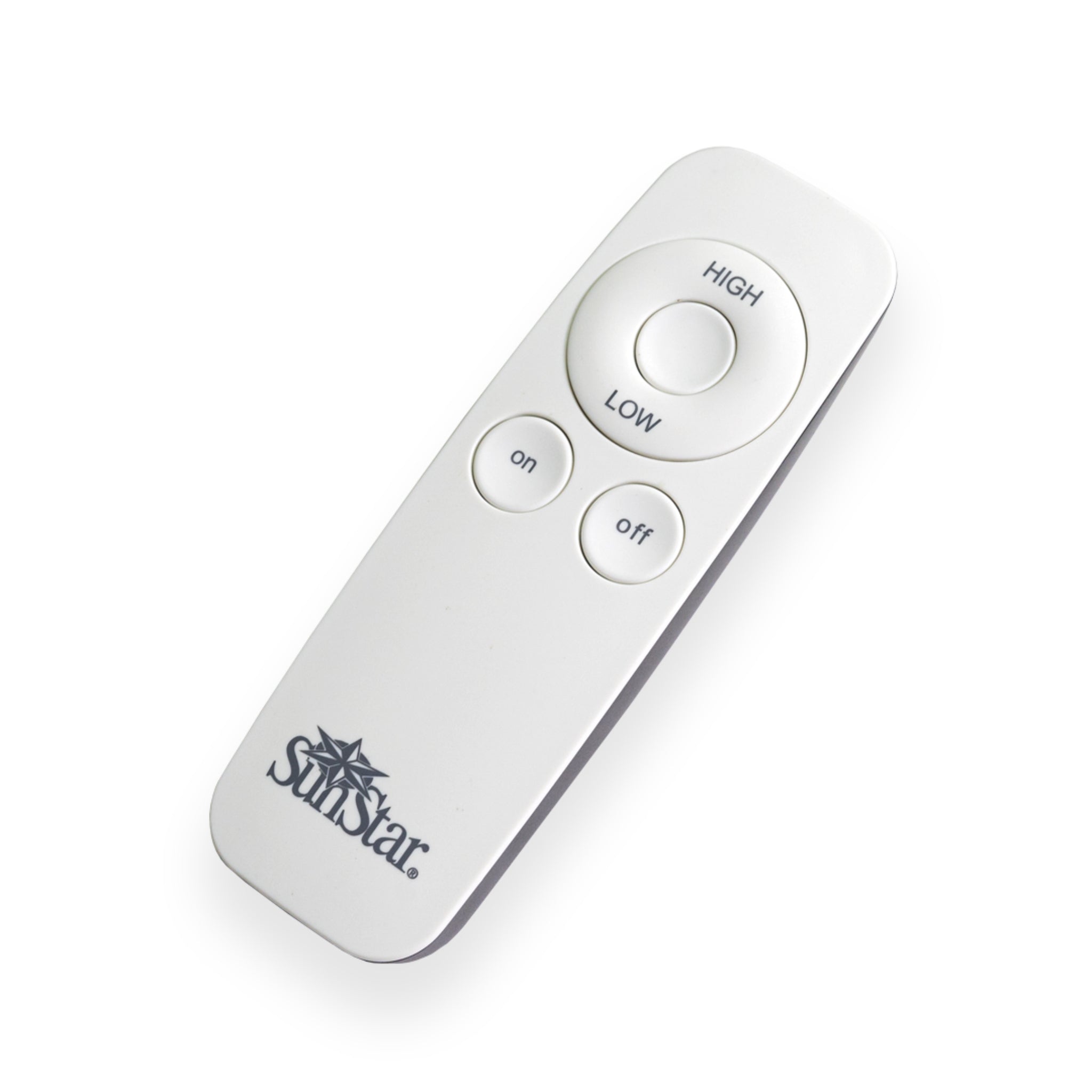

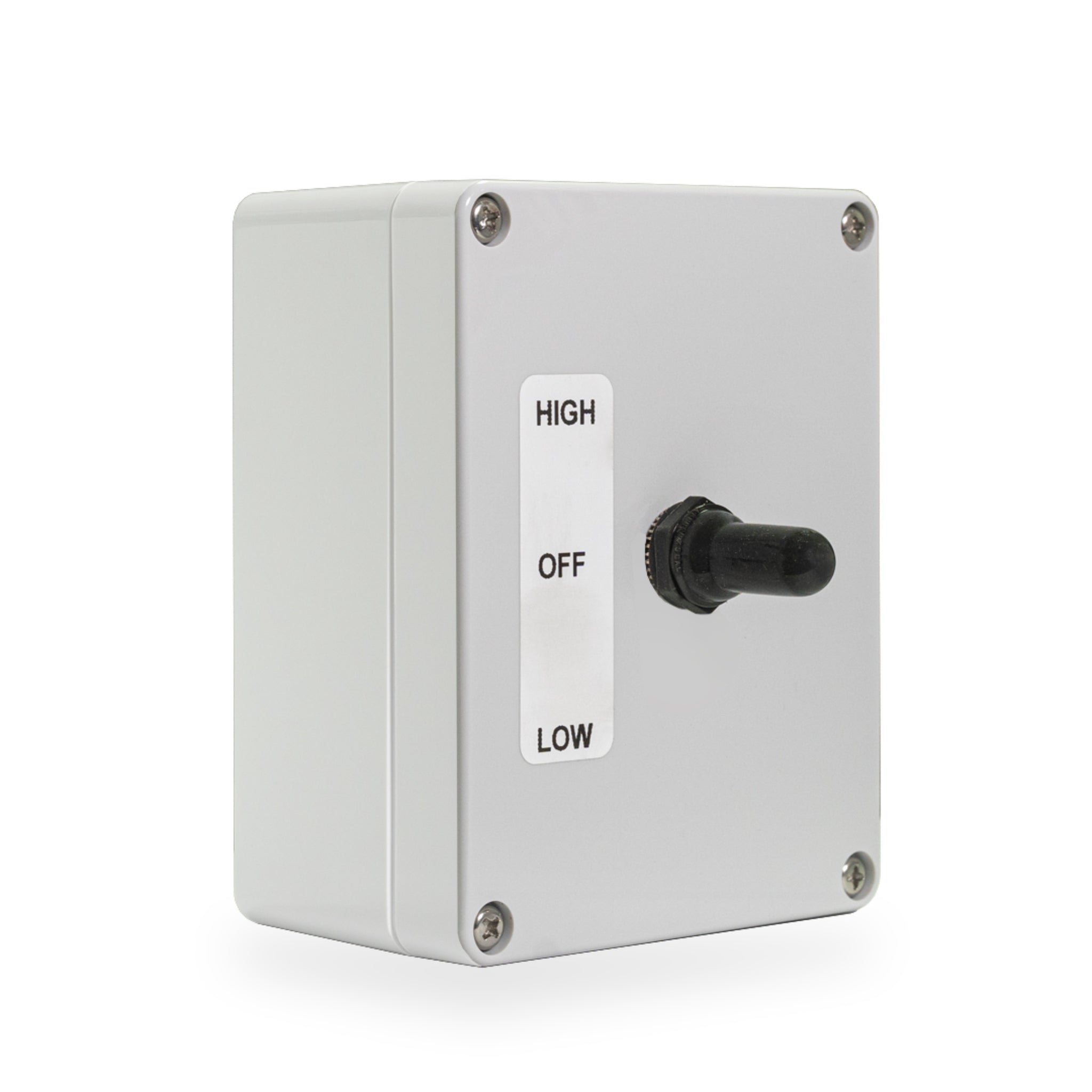

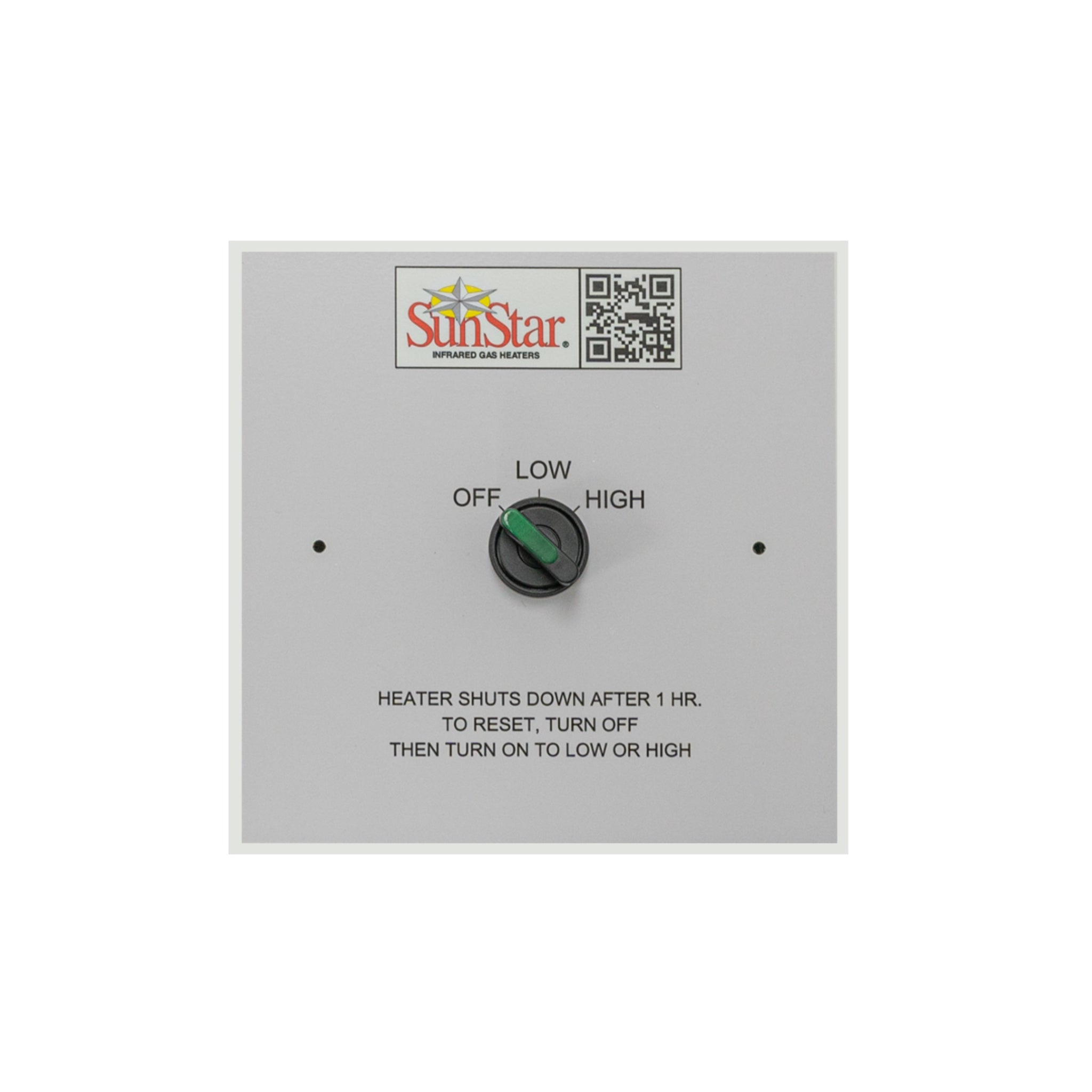

SunStar heaters offer four wall control configurations to match commercial operating needs. The standard wall switch provides simple ON and OFF operation. The wall switch with remote adds handheld control for added convenience. The wall switch with built-in 60-minute timer is a recessed switch option with lumination. It offers LOW and HIGH heat settings with an automatic shutoff for applications that require timed use (available as the standalone switch or switch + remote).
All models share the same heating performance. Choose your heater based on fuel type and control preference:
- Fuel Type: Natural Gas ("N" models) or Propane ("L" models)
- Control Type: Wall switch only ("7" models) or wall switch plus wireless remote ("10" models)
- Finish: SGL black glass-front steel cabinet
Features
- Two stage high output with low 34,000 BTU and high 50,000 BTU settings for commercial-scale comfort
- 0° fixed horizontal mounting with required clearance shield and 10" fixed mounting kit for reduced clearances to combustibles
- Available in natural gas or liquid propane with direct-spark ignition and automatic re-light
- SGL black glass-front cabinet with 3MIL weather resistant black powder coat
- Control options include a 3-position wall switch or wall switch plus wireless handheld remote
- Recommended mounting heights from 9 to 12 feet for horizontal installations, with coverage roughly 12' x 12' on low and up to 14' x 14' on high, depending on conditions
- Wind resistant up to 40 mph when installed to manufacturer clearances
- Outdoor-rated and CSA design certified for residential and commercial use
- Made in the USA
Specs
These commercial high output heaters are designed for covered outdoor areas such as restaurant patios, verandas, and outdoor dining spaces with higher mounting heights. Always follow the manufacturer installation manual for gas line sizing, electrical requirements, mounting hardware, and clearances to combustibles.
TYPICAL CLEARANCES TO COMBUSTIBLES - HORIZONTAL MOUNT (SGL50 GLASS SERIES)
The table below shows typical minimum clearances for SGL50 glass series heaters. Installers must always confirm with the latest SunStar® installation instructions and local codes.
| MOUNTING ANGLE | CEILING | CEILING W/SHIELD* | BACK | BACK W/SHIELD* | SIDE | END | BELOW | FRONT |
| 0° (horizontal) | 20 in | 10 in | N/A | N/A | 24 in | 12 in | 40 in | 48 in |
*Values with shield apply when the required SGL50 clearance heat shield is installed. Indoor installations or special conditions may require different clearances. Always refer to the current SunStar® installation manual and local codes.
SPECIFICATIONS
| Brand | SunStar® |
| Series | SGL50 Commercial Glass Series |
| Model Numbers |
50N7 SGL0, 50N10 SGL0, 50L7 SGL0, 50L10 SGL0 For Spec Sheet Model Clarification: |
| Fuel Type | Natural gas or liquid propane |
| BTU Output | 34,000 BTU (low) / 50,000 BTU (high), two-stage |
| Mounting | 0° fixed horizontal wall or ceiling mount with required clearance shield and 10" fixed mounting kit |
| Recommended Mounting Height | Approx. 9 to 12 ft for typical outdoor installations |
| Coverage Area | Approx. 12 ft x 12 ft (low) to 14 ft x 14 ft (high), depending on conditions |
| Ignition | Direct spark ignition with auto re-light and flame sensing |
| Cabinet Construction | High temperature black aluminized steel cabinet with glass front (SGL50) |
| Dimensions | 9.5 in H x 11.5 in W x 48 in L |
| Electrical | 120 VAC, 60 Hz (controls and ignition) |
| Wind Resistance | Tested to 40 mph wind when installed to specified clearances |
| Certifications | CSA design certified (Z83.19 / Z83.26) |
| Warranty | 3 year limited warranty on burner assembly and 1 year limited warranty on controls |
| Country of Origin | Made in USA |
California Proposition 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
Delivery
Ships in 1-2 weeks. Curbside freight delivery only. Customer is responsible for unloading and placement. See full Shipping Policy for details.
