SunStar® Commercial Angled Mount Gas Patio Heater | 34K-50K BTU
Free Standard Shipping
Description

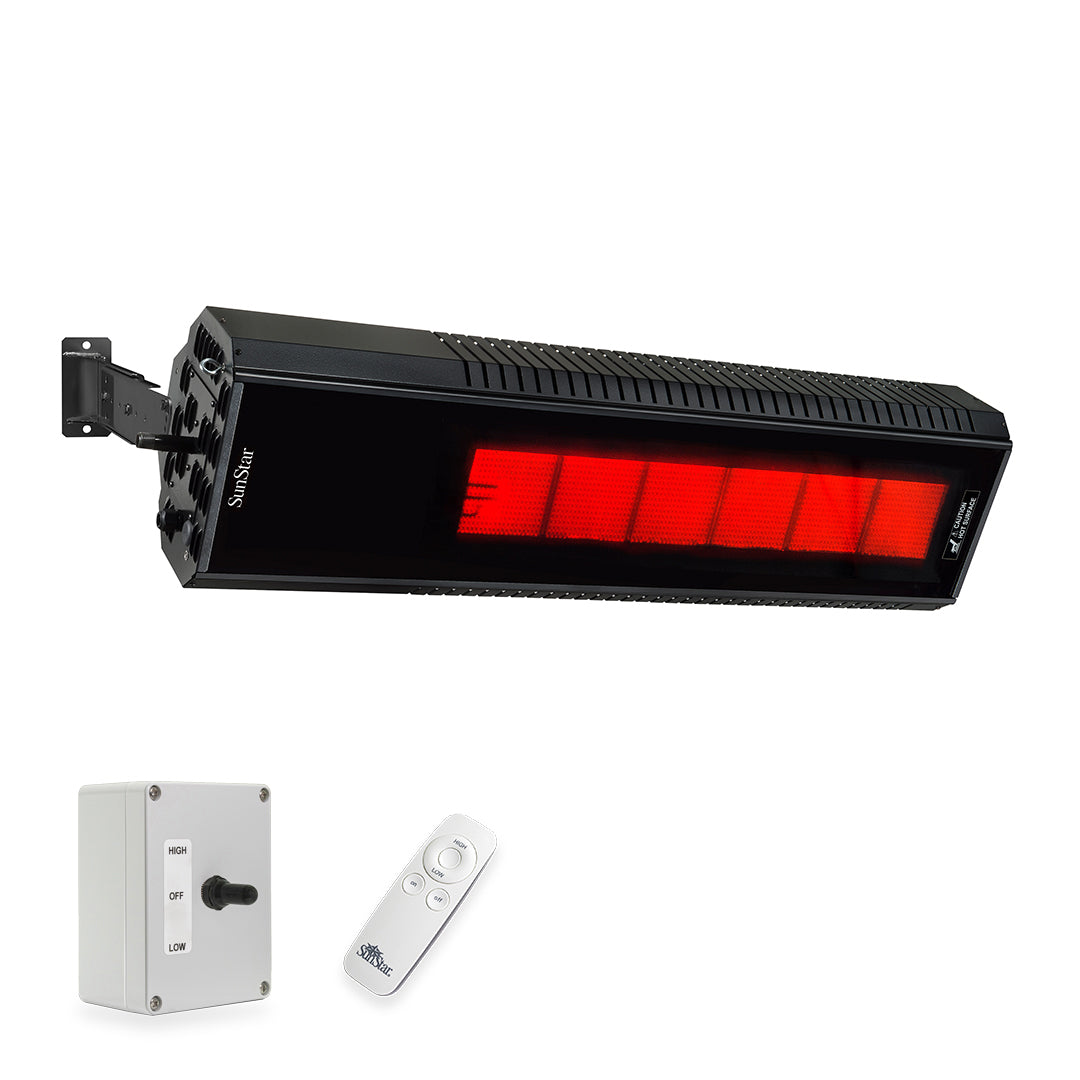

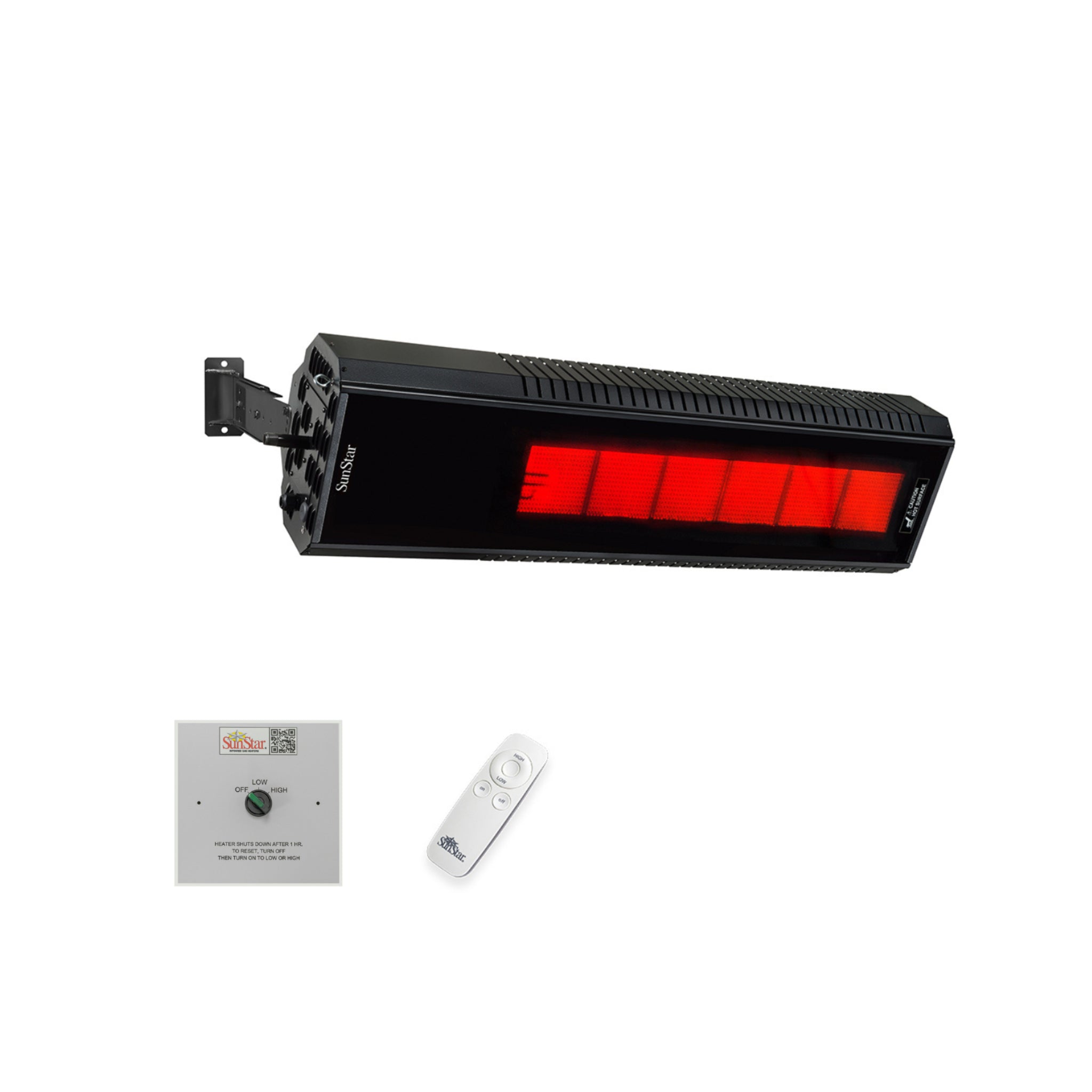

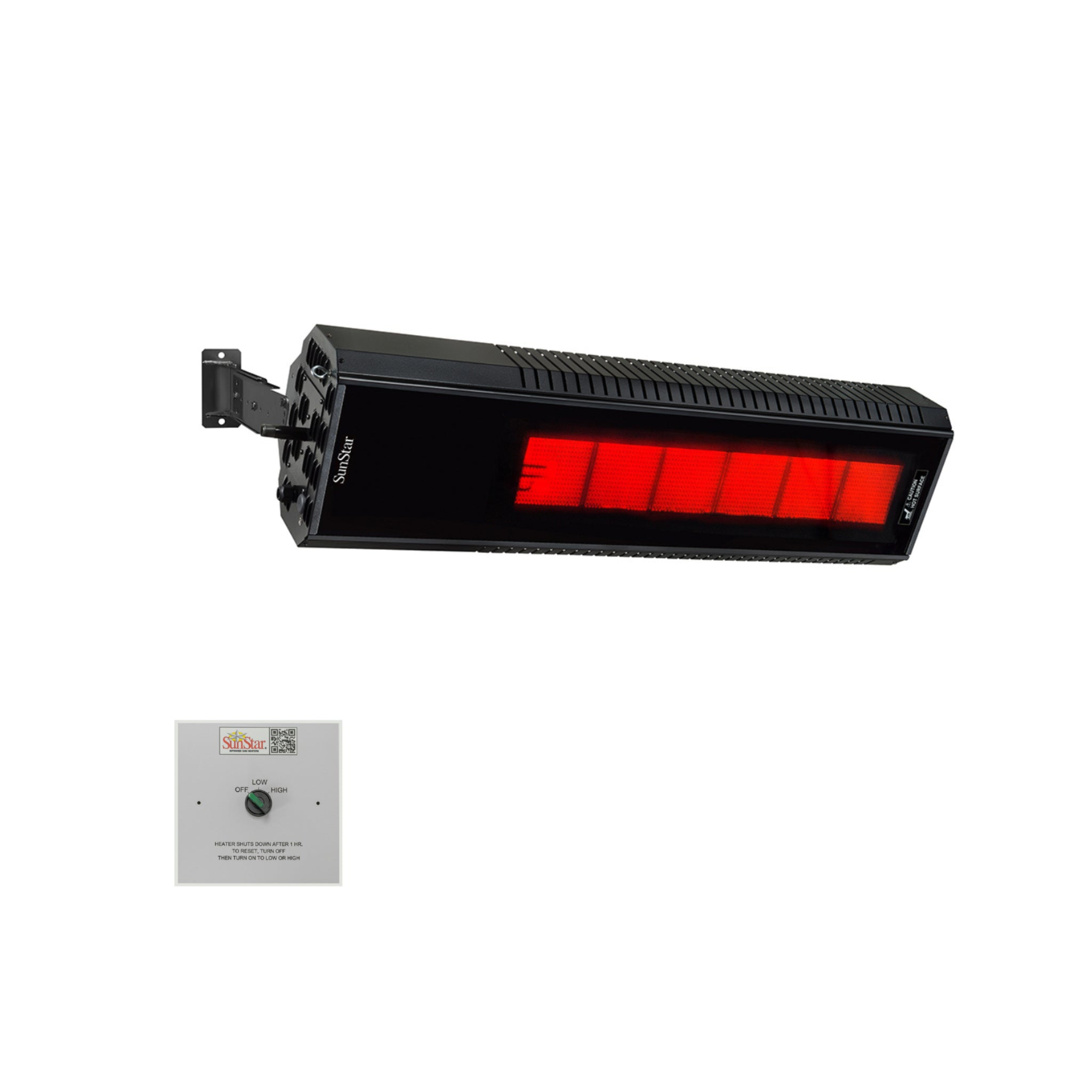

The SunStar Commercial Angled Mount Gas Patio Heater delivers high-output radiant heat for large patios, commercial terraces, and outdoor dining spaces that require targeted heat direction. With 34,000 or 50,000 BTU configurations, this two-stage gas heater mounts at adjustable angles from 15 to 60 degrees, allowing heat to be directed precisely into seating zones while keeping the unit tight to the ceiling structure. The glass front face maintains a clean, modern appearance, while the 48-inch body integrates cleanly along beams, fascias, and soffits. Designed for commercial durability, this heater provides consistent, even coverage for restaurants, resorts, dining areas, lounges, bars, and hospitality environments.
SunStar heaters are available with four wall control configurations so you can choose the setup that fits your space. The standard wall switch provides simple ON and OFF operation. The wall switch with remote adds handheld control for added convenience. The wall switch with built-in 60-minute timer is a recessed switch option with lumination. It offers LOW and HIGH heat settings with an automatic shutoff for applications that require timed use (available as the standalone switch or switch + remote).
All models share the same heating performance. Choose your heater based on fuel type and control preference:
- Fuel Type: Natural Gas ("N" models) or Propane ("L" models)
- Control Type: Wall switch only ("7" models) or wall switch plus wireless remote ("10" models)
- Finish: SGL black glass-front steel cabinet
IDEAL APPLICATIONS:

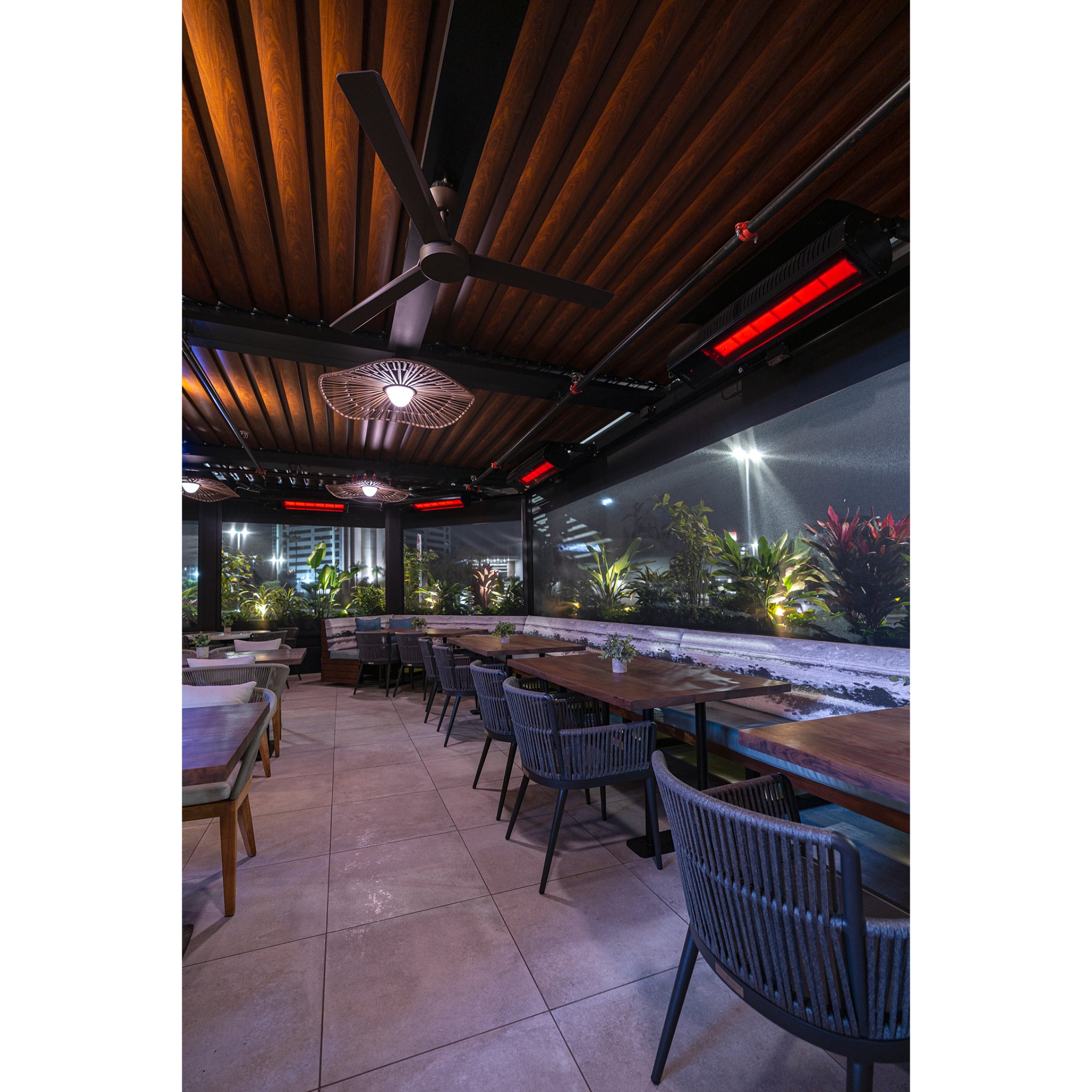

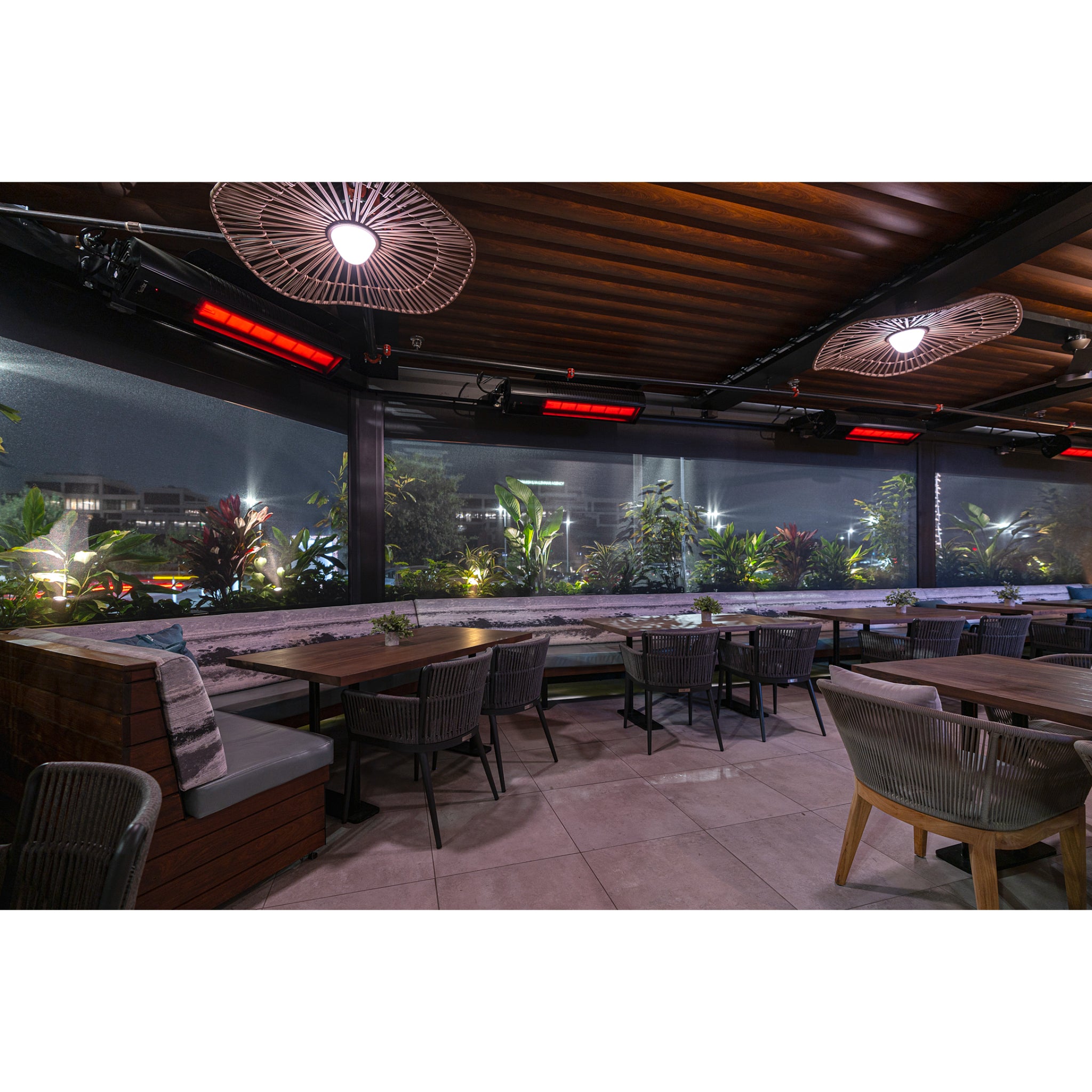

- Restaurant patios and outdoor dining areas
- Covered patios and pergolas
- Resort and hospitality seating areas
- Outdoor kitchens and lounge spaces
- Commercial terraces and rooftop seating
- Homes requiring low-profile ceiling-mounted heating
WHICH SUNSTAR CONFIGURATION IS RIGHT FOR YOU?
| CONFIGURATION | BEST FOR | TYPICAL USE |
| Standard Output 24K–35K BTU |
Most residential patios | Covered patios, pergolas, outdoor kitchens |
| Commercial High Output 34K–50K BTU |
Larger or commercial spaces | Restaurants, hospitality, high ceilings |
| Horizontal Mount | Broad overhead coverage | Flat ceiling installations |
| Angled Mount | Targeted directional heat | Seating and dining areas |
Features
- Two-stage heat output with 34,000 BTU low and 50,000 BTU high settings
- Angled mounting bracket adjusts from 15° to 60° to direct heat toward seating areas
- Available in natural gas or liquid propane with direct-spark ignition and automatic re-light
- Commercial-performance SGL50 black powder-coated steel cabinet

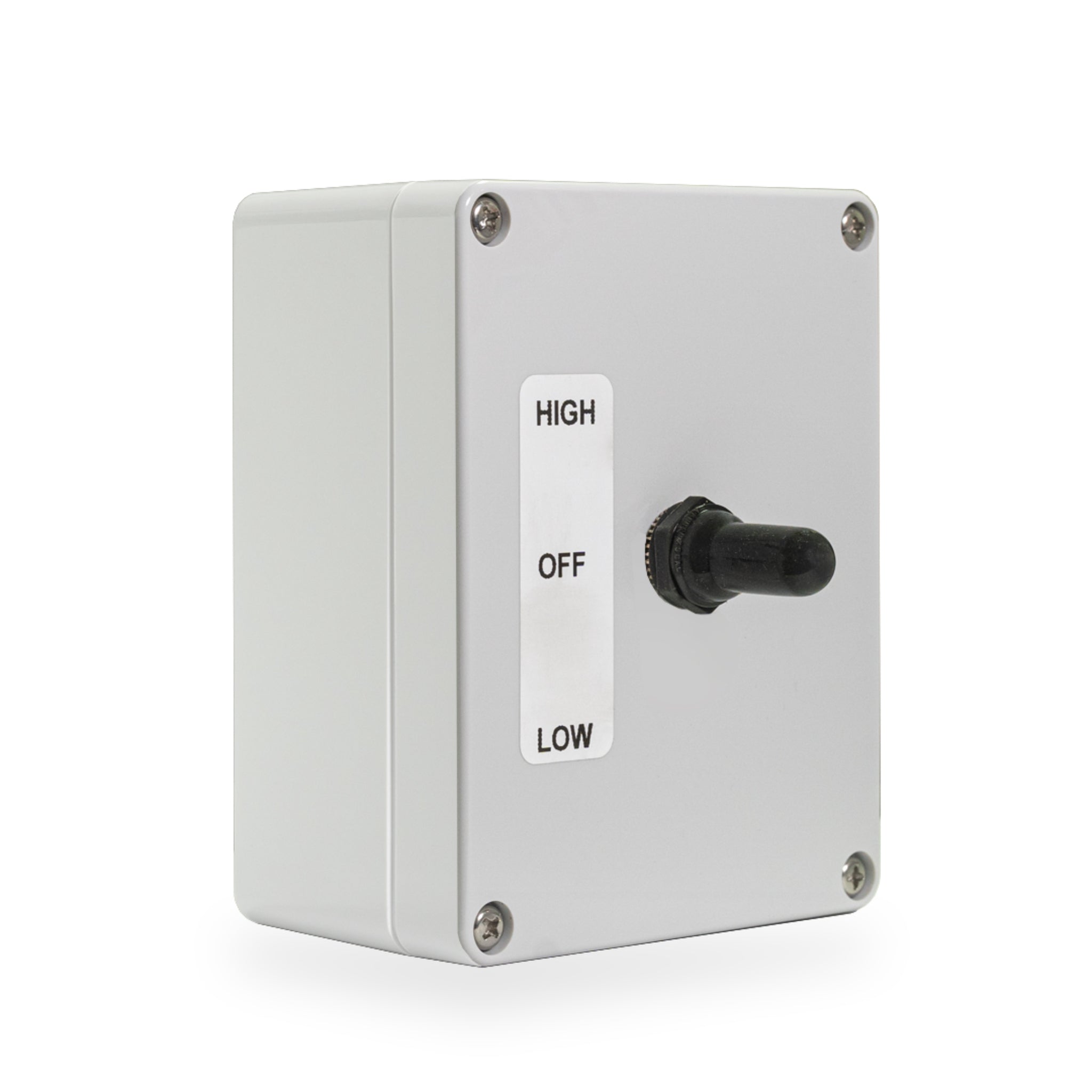

- Control options include a 3-position wall switch or wall switch plus wireless handheld remote
- Recommended mounting heights from 8 to 11 feet for angled installations, with coverage roughly 11' x 11' on low and up to 13' x 13' on high, depending on conditions
- Wind resistant up to 40 mph when installed to manufacturer clearances
- Outdoor-rated and CSA design certified for residential and commercial use
- Made in the USA
Specs
HEATER SIZING GUIDELINES - EXCERPT FROM MANUAL
These commercial heaters are designed for outdoor patio spaces, restaurant terraces, and large covered areas. Always follow the installation manual for gas line sizing, electrical requirements, mounting heights, and clearances to combustibles.
TYPICAL CLEARANCES TO COMBUSTIBLES – ANGELD MOUNT (SGL50 GLASS SERIES)
The table below shows typical minimum clearances for SGL50 glass series heaters. Installers must always confirm with the latest SunStar® installation instructions and local codes.
| MOUNTING ANGLE | CEILING | CEILING W/SHIELD* | BACK | SIDE | END | BELOW | FRONT |
| 30° | 23 in | 14 in | 8 in | 24 in | 12 in | 40 in | 48 in |
| 60° | 24 in | 17 in | 12 in | 24 in | 12 in | 40 in | 48 in |
*Values with shield apply when an optional clearance shield is installed. Indoor installations require different clearances; see the SunStar® installation manual for details.
SPECIFICATIONS
| Brand | SunStar® |
| Series | SGL50 Black Glass Series |
| Model Numbers |
50N7 SGL1560, 50N10 SGL1560, 50L7 SGL1560, 50L10 SGL1560
For Spec Sheet Model Clarification: |
| Fuel Type | Natural gas or liquid propane |
| BTU Output | 34,000 BTU (low) / 50,000 BTU (high), two-stage |
| Mounting | Adjustable 15° to 60° angled installation |
| Recommended Mounting Height | Approx. 8 to 11 ft for typical outdoor installations |
| Coverage Area | Approx. 11 ft x 11 ft (low) to 13 ft x 13 ft (high), depending on conditions |
| Ignition | Direct spark ignition with auto re-light |
| Cabinet Construction | High-temp black aluminized steel (SGL) |
| Dimensions | 9.5 in H x 11.5 in W x 48 in L |
| Electrical | 120 VAC, 60 Hz (controls and ignition) |
| Wind Resistance | Tested to 40 mph wind when installed to specified clearances |
| Certifications | CSA design certified (Z83.19 / Z83.26) |
| Warranty | 3 year limited warranty on burner assembly and 1 year limited warranty on controls |
| Country of Origin | Made in USA |
California Proposition 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
FAQs
WHAT IS THE DIFFERENCE BETWEEN THE HORIZONTAL AND ANGLED MOUNT SUNSTAR HEATERS?
Horizontal mount models install flat at a fixed 0° angle and are ideal for higher ceilings or broad overhead coverage. Angled mount models adjust from 15° to 60°, allowing heat to be directed more precisely into seating and dining areas.
WHAT IS THE DIFFERENCE BETWEEN THE STANDARD AND COMMERCIAL HIGH OUTPUT MODELS?
Standard SunStar heaters provide 24,000 BTU low and 35,000 BTU high settings, making them ideal for most residential patios and smaller hospitality spaces. Commercial high output models increase performance to 34,000 BTU low and 50,000 BTU high for larger patios, higher mounting heights, and commercial environments requiring wider heat coverage.
DO SUNSTAR HEATERS WARM THE AIR OR PEOPLE DIRECTLY?
SunStar infrared patio heaters warm people and surfaces directly rather than heating the surrounding air. This creates more efficient outdoor comfort compared to traditional mushroom-style patio heaters, especially in cooler temperatures and partially open environments.
CAN THESE HEATERS BE USED IN WINDY CONDITIONS?
Yes. SunStar heaters are tested for operation in winds up to 40 mph when installed according to manufacturer clearances and mounting requirements. Covered patios and partially protected outdoor spaces typically provide the best heating performance.
ARE THESE HEATERS SAFE FOR COVERED PATIOS AND PERGOLAS?
Yes. These heaters are specifically designed for covered outdoor environments such as patios, pergolas, verandas, outdoor kitchens, restaurant seating areas, and hospitality terraces. Always follow the manufacturer installation manual and required clearances to combustibles.
WHAT IS THE DIFFERENCE BETWEEN THE SGL AND MGL SERIES?
The SGL series features a black glass-front aluminized steel cabinet designed for most residential and commercial installations. The MGL series upgrades to a 316 marine-grade stainless steel cabinet, making it a better option for coastal environments, humid climates, and locations exposed to salt air.
SHOULD I CHOOSE NATURAL GAS OR PROPANE?
Natural gas models are ideal for permanent installations connected to a home or commercial gas line. Propane models are often selected when natural gas is unavailable or for installations using dedicated propane supply systems.
CAN THESE HEATERS BE USED FOR COMMERCIAL RESTAURANT PATIOS?
Yes. SunStar heaters are commonly used in restaurants, resorts, hospitality lounges, rooftop patios, bars, and commercial outdoor dining spaces due to their efficient radiant heat output, low-profile design, and commercial-grade construction.
HOW MANY HEATERS DO I NEED FOR MY PATIO?
The number of heaters required depends on patio size, ceiling height, wind exposure, and whether the space is partially enclosed. As a general guideline, standard models typically cover approximately 8' x 8' to 12' x 12', while commercial high output models can cover up to approximately 14' x 14' depending on installation conditions.
DO SUNSTAR HEATERS REQUIRE PROFESSIONAL INSTALLATION?
Yes. Professional installation by a qualified licensed contractor is strongly recommended. Installation includes gas connections, electrical wiring, mounting hardware, clearances, and compliance with local building and fuel gas codes.
CAN THESE HEATERS BE CONTROLLED REMOTELY?
Yes. Select SunStar models include a wireless handheld remote in addition to wall controls. Remote-equipped models are identified by “10” in the model number.
ARE SUNSTAR HEATERS MADE IN THE USA?
Yes. SunStar gas patio heaters are manufactured in the USA and are CSA design certified for residential and commercial outdoor heating applications.
Delivery
Estimated delivery time is 1-2 weeks. Curbside freight delivery only. Customer is responsible for unloading and placement. See full Shipping Policy for details.
Returns Policy
Returns are accepted within 30 days from the date of purchase if eligible or defective. See full Return Policy for details.
