Pickleball Court Divider System 21' - 40' | Surface Mount
Free Standard Shipping
Description

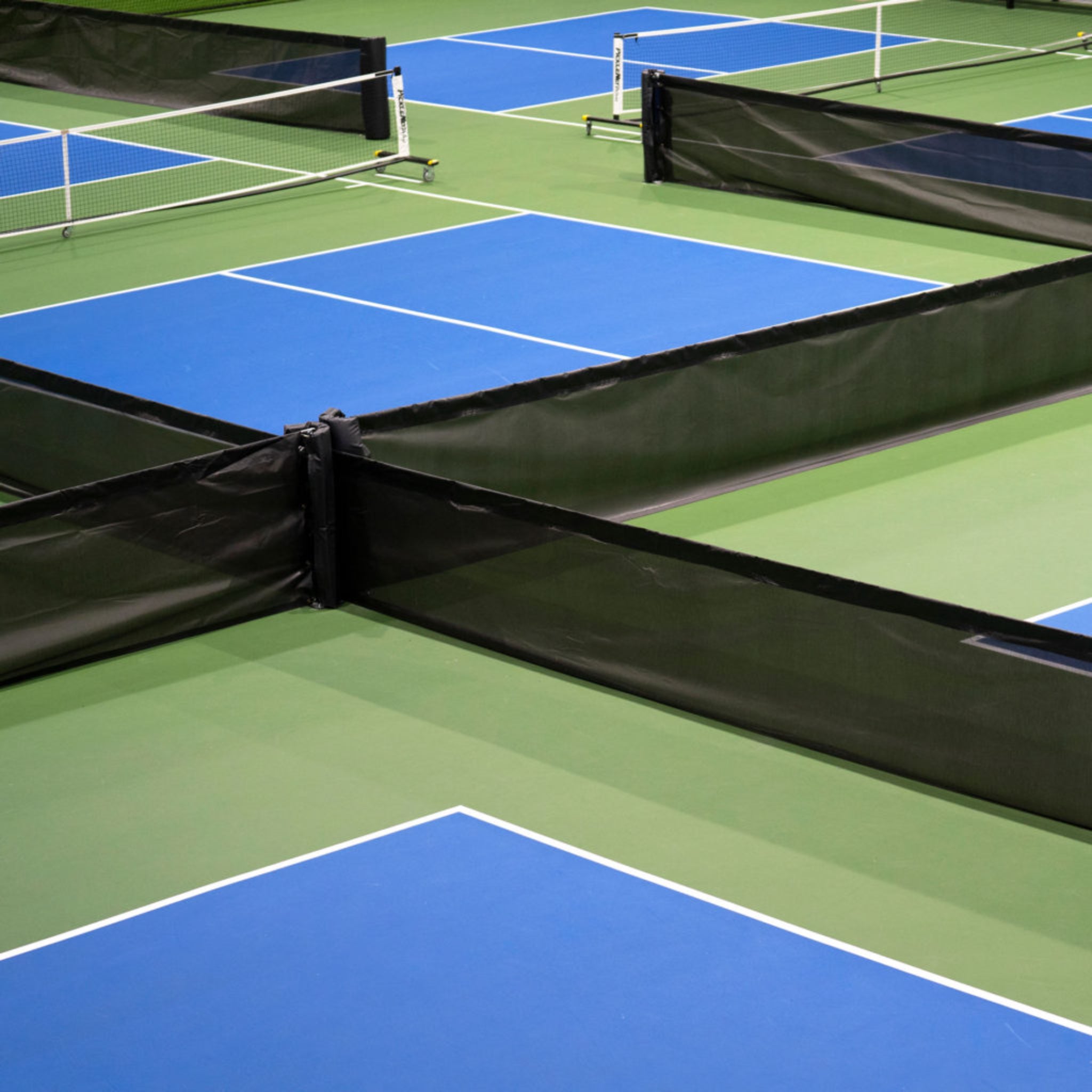

Designed for existing courts and retrofit installations, the Douglas® Surface Mount Pickleball Court Divider System delivers a secure, semi-permanent solution without the need for excavation. Ideal for facilities with concrete surfaces, this system bolts directly to the court, creating clean, professional separation between playing areas while maintaining flexibility for future modifications.

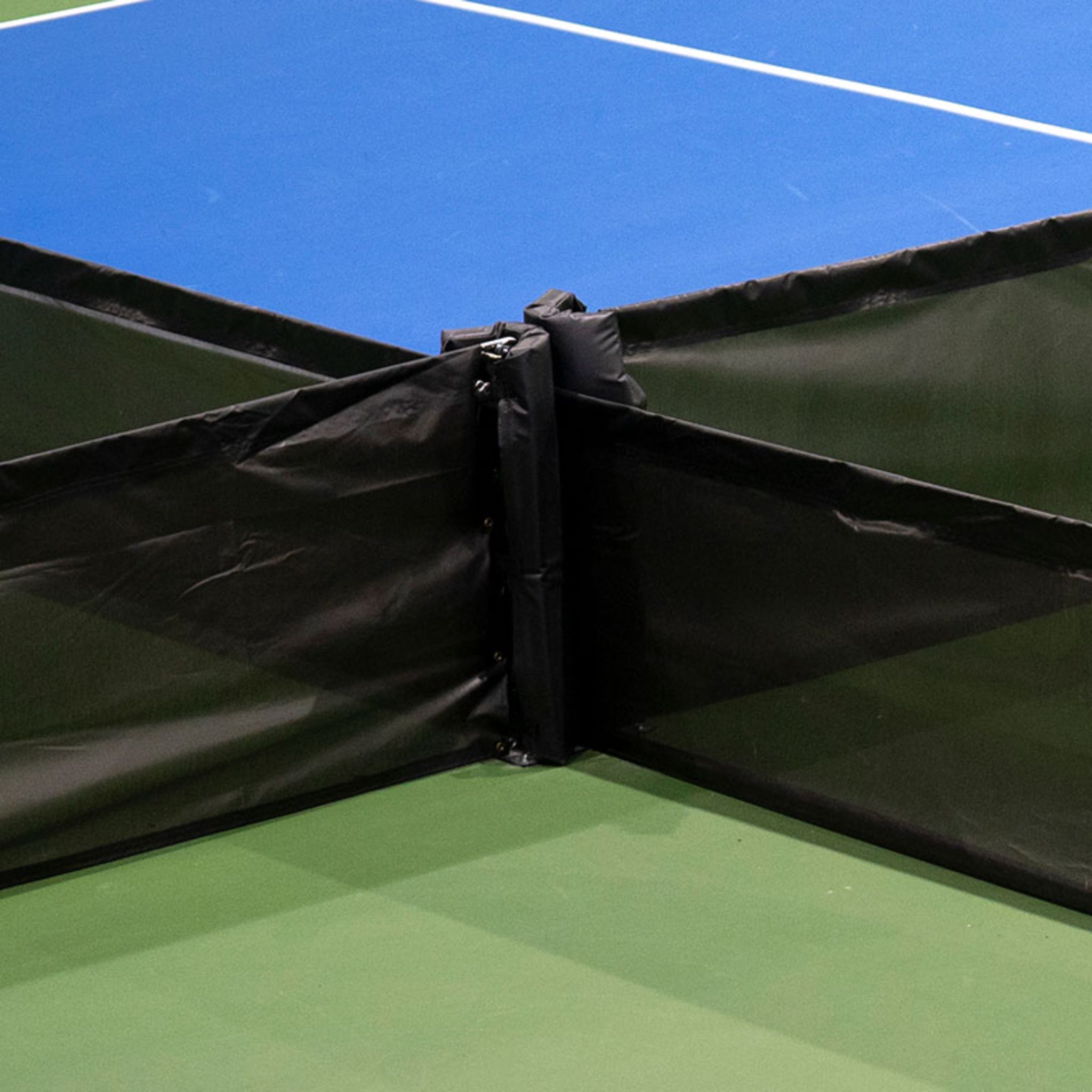

Each system features heavy-duty 3” square steel poles welded to a reinforced 7” x 7” baseplate with support gussets, ensuring maximum stability once anchored. Constructed from 11-gauge steel and finished with a black baked-on powder coat, these posts are built to resist corrosion and withstand high-use indoor and outdoor environments.
Divider panels are custom fabricated using either VCP windscreen mesh or #420 knotless pylon netting, offering a balance of visibility control, durability, and weather resistance. Panels are finished with reinforced vinyl borders, evenly spaced brass grommets, and a concealed headband pocket that hides all tensioning hardware for a clean, professional appearance.
The galvanized steel cable tensioning system ensures consistent panel alignment and long-term performance. This makes the system ideal for indoor facilities, multi-court complexes, private clubs, and residential applications where drilling into the surface is preferred over permanent in-ground installation.
Best For:
- Existing pickleball or multi-sport courts with concrete surfaces
- Facilities that want a permanent-feel divider without excavation
- Clubs, schools, and recreation centers upgrading current courts
- Indoor or outdoor courts requiring durable, fixed separation
- Projects where drilling into the surface is preferred over in-ground installation
Comparing movable, surface mount, and in-ground divider systems helps determine the right solution based on your facility setup, installation requirements, and long-term usage needs.
| FEATURE | MOVABLE DIVIDER SYSTEM | SURFACE MOUNT DIVIDER SYSTEM | IN-GROUND DIVIDER SYSTEM |
| Installation Type | Free-standing (no installation required) | Bolted to surface (no excavation) | In-ground (permanent installation) |
| Best For | Indoor facilities, multi-use courts, flexible layouts | Existing courts needing permanent-feel without excavation | New builds and permanent multi-court facilities |
| Stability | Moderate | High | Maximum |
| Flexibility | Maximum (fully movable) | Low (fixed position) | None (permanent) |
| Surface Requirements | Any flat indoor surface | Concrete or hard surface required | Requires ground excavation and concrete |
| Use Environment | Indoor only | Indoor & outdoor | Indoor & outdoor |
| Installation Complexity | None | Moderate | High |
| Typical Buyer | Gyms, schools, multi-use facilities | Clubs, retrofit courts, residential upgrades | Commercial facilities, resorts, new builds |
| Positioning | Flexible and reconfigurable solution | Permanent feel without excavation | Premium permanent installation |
The Douglas® Surface Mount Pickleball Court Divider System is designed for retrofit applications where a secure, semi-permanent solution is needed without excavation. By anchoring directly to the court surface, it delivers professional-grade stability and clean court separation while maintaining installation flexibility. Explore our Pickleball Net Systems collection to compare professional net and post systems for residential and commercial courts.
Features
- Semi-permanent surface mount installation (no excavation required)
- 3” square, 11-gauge steel poles for structural strength
- Reinforced 7” x 7” welded baseplate with support gussets
- Black baked-on powder-coated finish for corrosion resistance

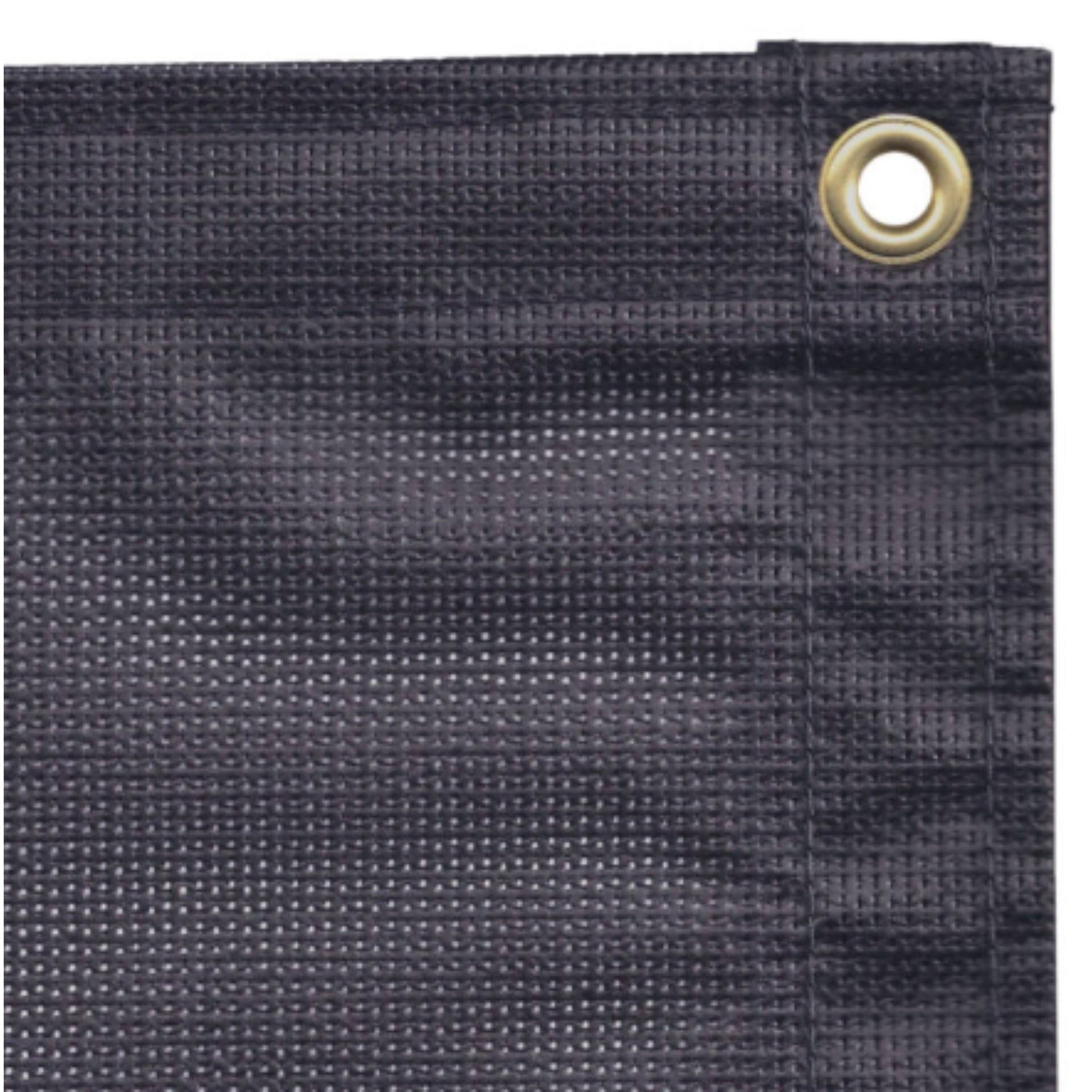

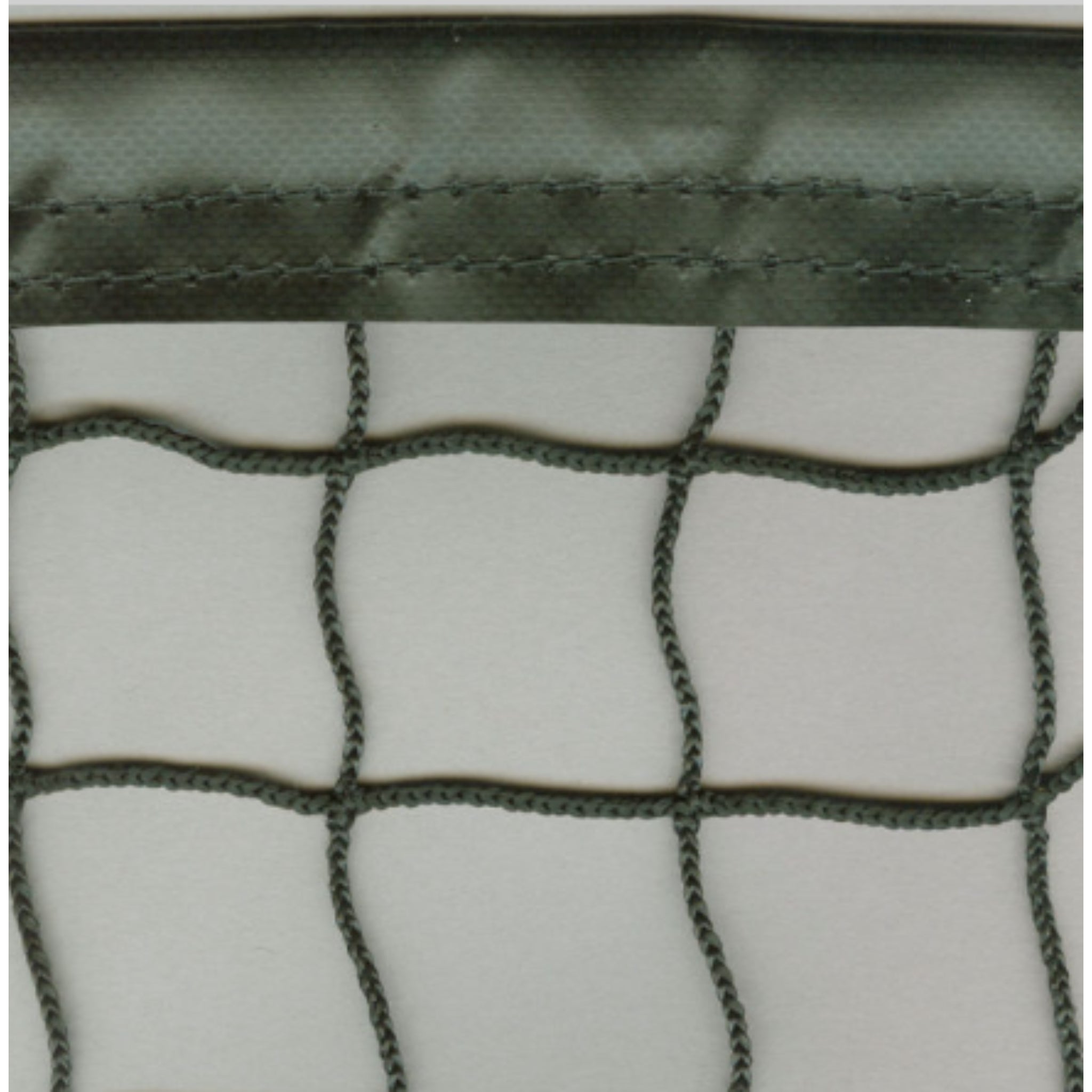

- Custom divider panels in VCP windscreen (indoor) or #420 knotless netting (indoor or outdoor)
- Reinforced vinyl borders with brass grommets for durability
- Concealed headband pocket for clean, professional appearance
- Galvanized steel cable system with turnbuckles and hardware
- Suitable for indoor and outdoor applications
- Custom widths available (standard up to 40’)
- Custom printing available on VCP MAX windscreen
- Protective 2" thick pole padding available as an option (high impact foam wrapped with black all-weather vinyl that is mildew and mold resistant)
- What's Included
- (2) 3” square steel poles with welded baseplates
- Divider panel (VCP windscreen or #420 knotless netting)
- Galvanized steel cable and tensioning hardware
- Cable clamps, turnbuckles, and attachment components
- Lacing cord or ties for panel installation
- Pole caps and mounting collars
Specs
DOUGLAS SURFACE MOUNT PICKLEBALL COURT DIVIDER SYSTEM SPEC SHEET
DOUGLAS SURFACE MOUNT PICKLEBALL COURT DIVIDER SYSTEM PRODUCT SHEET
DOUGLAS PICKLEBALL COURT DIVIDER SYSTEM INSTALL LAYOUTS
| Installation Type | Surface Mount (Semi-Permanent) |
| Pole Size | 3” Square |
| Pole Material | 11-Gauge Steel |
| Pole Height | 51” (4’3” Above Surface) |
| Baseplate | 7” x 7” Welded Steel with Gussets |
| Finish | Black Baked-On Powder Coat |
| Panel Material Options | VCP MAX Windscreen (indoor) or #420 Knotless Netting (indoor or outdoor) |
| Panel Height | 4’ Standard |
| Maximum Standard Width | Up to 40’ (Custom Available) |
| Hardware | Galvanized Steel Cable, Clamps, Turnbuckles |
| Use | Indoor & Outdoor |
FAQs
DOES THIS SYSTEM REQUIRE EXCAVATION OR IN-GROUND INSTALLATION?
No. This is a surface mount system that bolts directly to the court using baseplates. It eliminates the need for excavation or in-ground sleeves.
IS THIS SYSTEM SUITABLE FOR OUTDOOR USE?
Yes. The powder-coated steel construction and weather-resistant panel options make it suitable for both indoor and outdoor environments.
HOW DOES THIS COMPARE TO A MOVABLE DIVIDER SYSTEM?
Movable systems are free-standing and designed for flexibility. Surface mount systems are fixed in place, providing greater stability and a more permanent court setup.
HOW DOES THIS COMPARE TO AN IN-GROUND DIVIDER SYSTEM?
In-ground systems require excavation and offer the most permanent installation. Surface mount systems provide similar stability while allowing for faster installation and less disruption to the court.
WHAT TYPES OF PANELS ARE AVAILABLE?
Panels are available in VCP MAX windscreen for indoor use or #420 knotless netting for indoor or outdoor applications, depending on visibility and durability needs.
CAN THIS SYSTEM BE INSTALLED ON AN EXISTING COURT?
Yes. This system is specifically designed for existing concrete courts, making it ideal for retrofit projects.
WHAT IS THE MAXIMUM WIDTH?
Standard systems are available up to 40 feet wide, with custom widths available for specific court layouts.
WHAT IS THE TYPICAL LEAD TIME?
Divider systems are typically built to order, with an estimated lead time of 4–5 weeks. For project timelines, contact our Concierge Team.
Delivery
Freight delivery is curbside only; drivers are not required to unload. Estimated delivery is 4-5 weeks for custom products including court dividers. Please review full details in our Shipping Policy.
Returns Policy
Returns are accepted for damaged or defective items. For other return eligibility please see our Return & Refund Policy.
