Description
The PGS E-Stop Gas Shutoff Timer gives property managers and commercial outdoor spaces a smarter way to control gas-fed amenities while improving safety. Designed for multifamily communities, hospitality properties, and shared-use outdoor kitchens, this UL-listed system shuts off the main gas feed line during preset hours while also providing an emergency shutoff override. Built for both natural gas and propane systems, it helps reduce liability, improve energy efficiency, and ensure safer operation for shared grilling, fire feature, spa, and patio heating areas.
Features
- Designed for multifamily, HOA, hospitality, and shared outdoor amenity spaces
- Controls gas supply to grills, fire pits, patio heaters, and spas

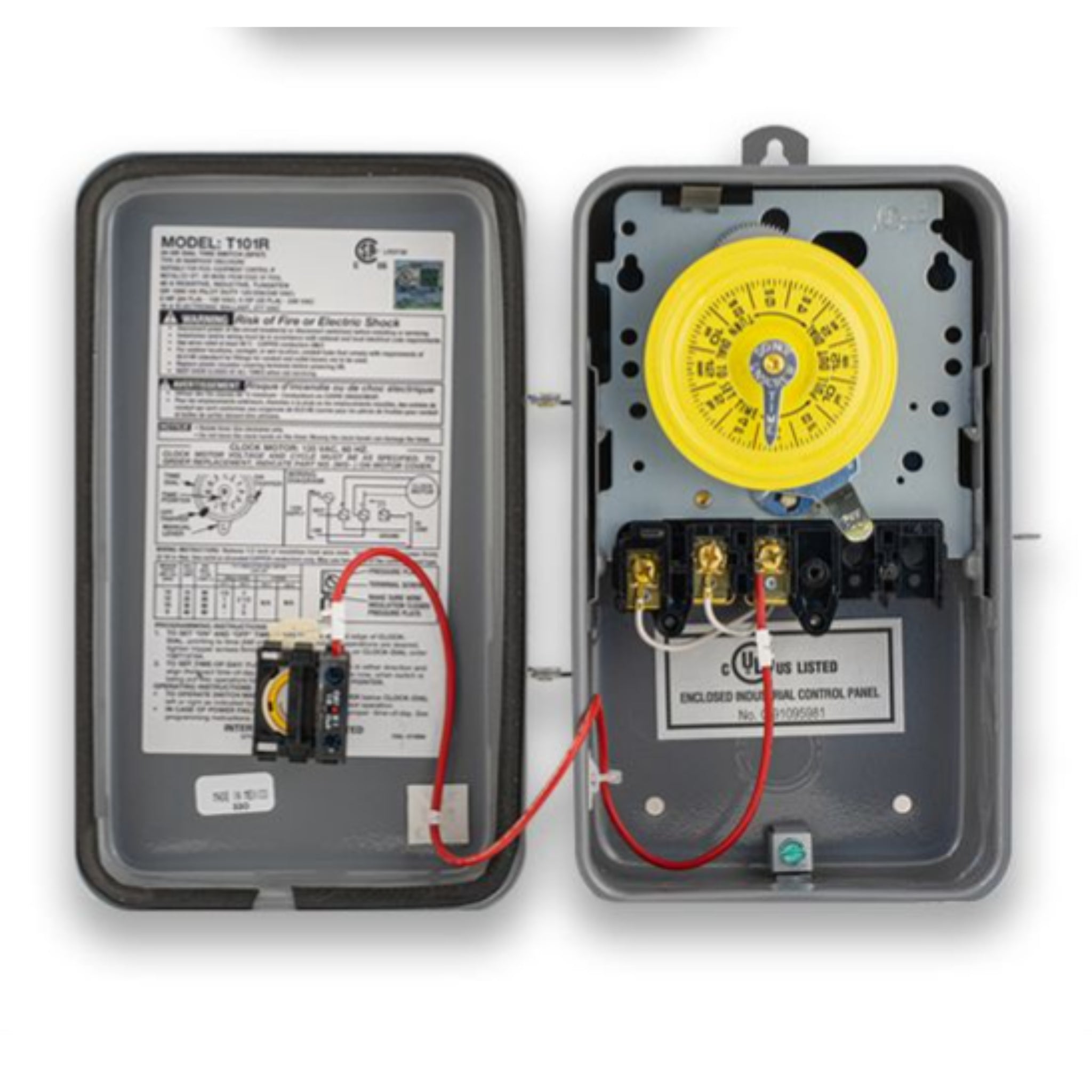

- UL 508 listed convenience timer shutoff for scheduled gas control
- Built-in self-latching emergency stop button for immediate gas shutoff
- E-stop function does not interfere with timer operation
- Supports both natural gas and liquid propane systems

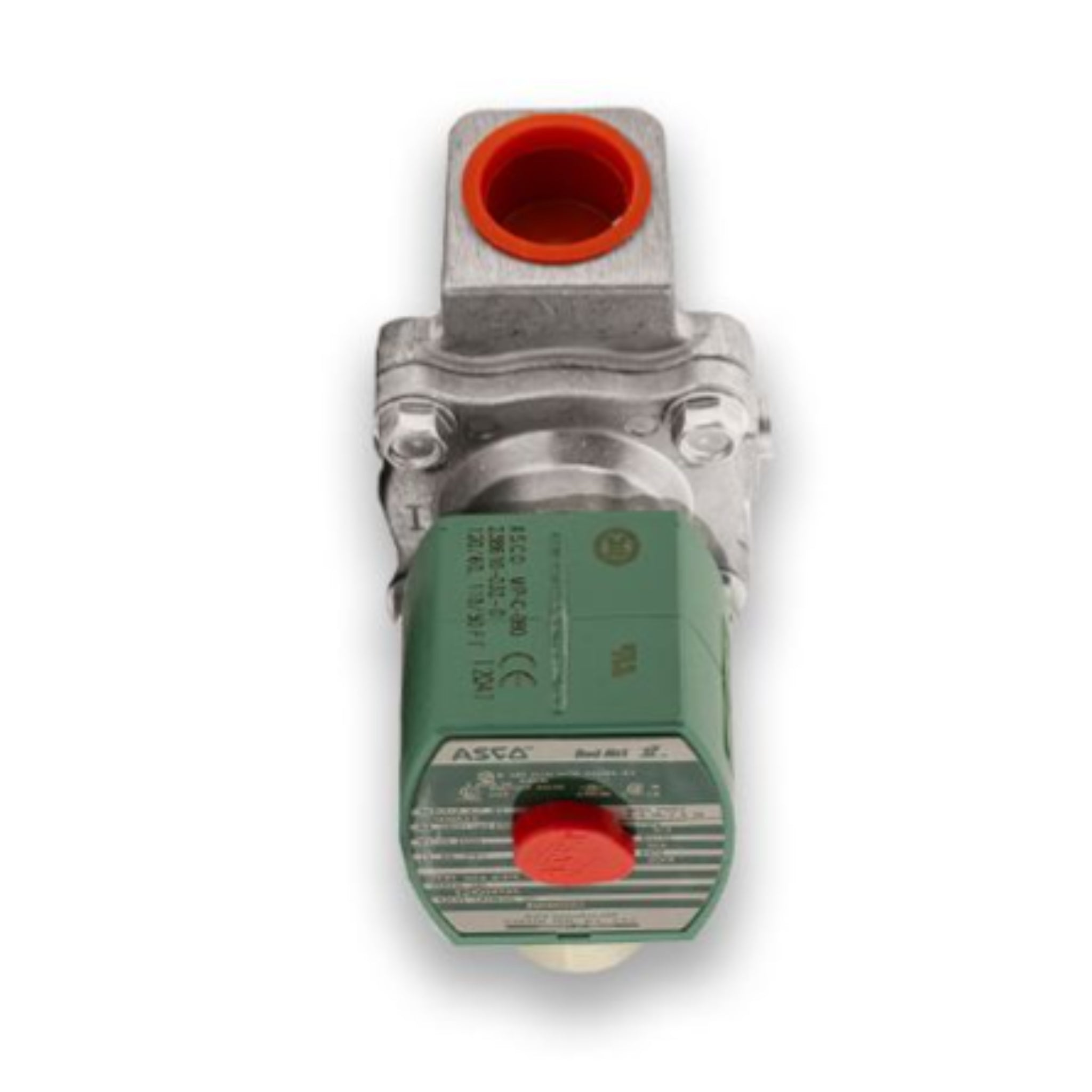

- Includes 3/4" NPT normally closed gas solenoid valve
- NEMA 3R weather-resistant enclosure for outdoor installation
- 120 VAC power requirement
- Lockable timer function for secure access control
- Easy manual reset after emergency stop activation
- Designed for professional installation by a qualified gas technician
- Backed by a 1-year manufacturer warranty against defects in parts
Specs
GAS SHUTOFF TIMER WITH E-STOP CONTROL MANUAL
| Design |
Shuts off the main gas feed line during preset hours while also providing an emergency shutoff override |
| Application |
Shared-use outdoor gas amenities such as in multi-family, hospitality and other shared use venues |
| Fuel Compatibility |
Natural Gas and Liquid Propane |
| Voltage |
120 VAC |
| Gas Connection |
3/4" NPT Normally Closed Gas Solenoid Valve |
| Timer Listing |
UL 508 Listed Convenience Timer Shutoff |
| Enclosure Rating |
NEMA 3R |
| Timer Box Height |
9.5" |
| Timer Box Width |
5.75" |
| Timer Box Depth |
3.75" box / 5.5" including button |
| Valve Dimensions |
4.5" H x 4" W x 2.25" D |
| Reset Function |
Manual reset by rotating E-stop button clockwise |
| Installation |
Professional gas technician recommended |
| Warranty |
1 Year Limited Parts Warranty |
Delivery
Estimated delivery time is 2 weeks. Curbside freight delivery only. Customer is responsible for unloading and placement. See full Shipping Policy for details.
Returns Policy
Returns are accepted within 30 days from the date of purchase if eligible or defective. See full Return Policy for details.
